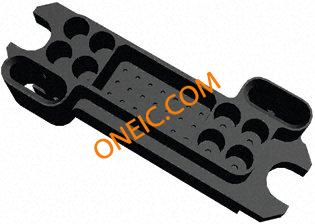

1648205-1
| 制造商 | |

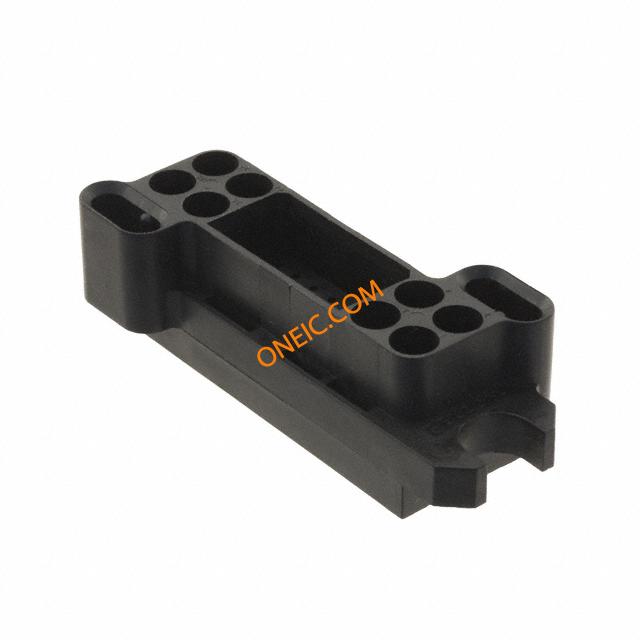

| 描述 | Conn Housing PIN 4/21 POS Crimp ST Cable Mount High Power Drawer - Elcon CONN PIN LOWER DRAWER 16/20/12 Elcon,lower drawer,hsng,plug,29way Heavy Duty Power Connectors PIN HOUSING CONN SIZE 12 16 20 1648205-1 Conn Housing PIN 4/21 POS Crimp ST Cable Mount Product Highlights:HousingContact Size = 12, 16, 20Drawer Style = LowerPinSize 12 + Size 20 + Size 16 Contact Configuration Elcon,lowerdrawer,hsng,plug,29way |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 45 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 最大额定电流 | 35 | ||
机械参数

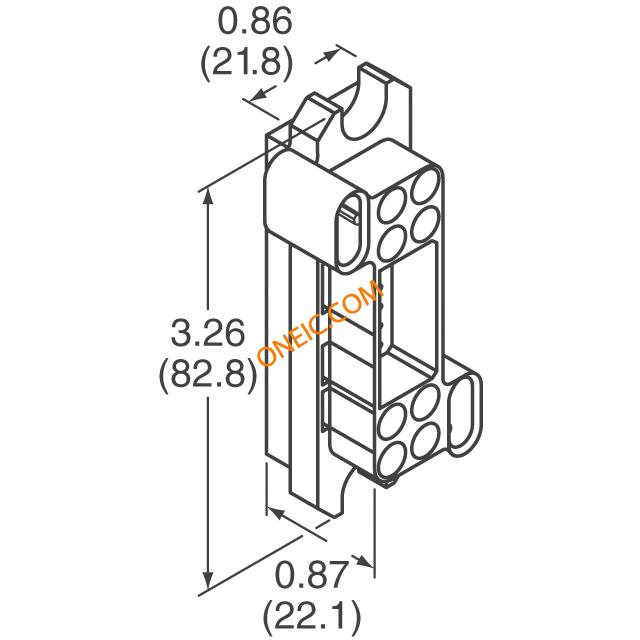

| 颜色 | Black | 深度 | 22.09mm |
| 长度 | 82.8mm | 包装方式 | Bulk |
| 触点尺寸 | 12 / 16 / 20 | 触头类型 | Size 12 + Size 20 + Size 16 |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Housing for Male Pins | 接触镀层 | Gold |
| 排数 | 3 | 连接器样式 | Plug |
| 连接器用途 | Plug | 插入力 | Male |
| 触头材料 | Brass | 壳体材料 | Thermoplastic - GF |
| 主要材料 | Receptacle | 端接样式 | Cable |
| 触点数 | 4/21 | 位数 | 29 (21 + 8 Power) |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PIN | 系列 | ELCON |
| 产品特性 | Mating Guide | 预加载 | No |
| 制造商全称 | Elcon | 产品子类型 | Connector |
| 抽屉总数 | Lower | 适用产品/相关产品 | Power Connector |
