点击放大查看

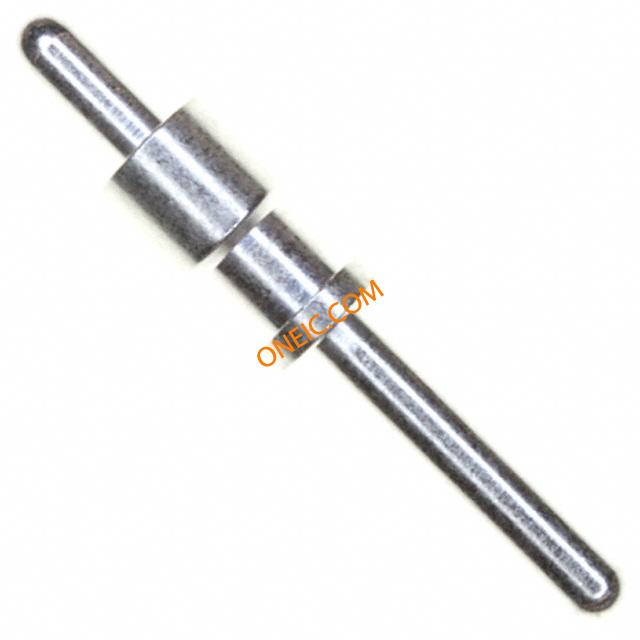

1766245-1
| 制造商 | |
| 描述 | Contact PIN Solder ST Thru-Hole High Current ELCON Drawer Connectors CONN PIN #12 PCB SILVER Power to the Board CONTACT PIN #12 Contact PIN Solder ST Thru-Hole Product Highlights:ContactContact Size = 12PinTermination Type = PCB (Standard)Not Hot Pluggable CONTACT, PIN, THROUGH HOLE VERTICAL CONTACT,PIN,#12 |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
电气参数
| 最大额定电流 | 35A | ||
机械参数
| 间距 | Not Required mm | 重量 | 0 |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触点尺寸 | :12 | 触头类型 | Power |
| 安装类型 | Straight | 插针或插孔 | Pin |
| 连接器类型 | Connector Power | 接触镀层 | Silver Over Nickel |
| 安装样式 | Cable | 触头材料 | Brass |
| 壳体材料 | Not Required | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 触点数 | 1 POS |
| 接触件端接 | Solder, PCB | 接触镀层厚度 | 200µin (5.08µm) |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | :- | 产品子类型 | Contacts |
| 端口数 | 1 Port | 适用产品/相关产品 | :Power Connectors |
文档与媒体
