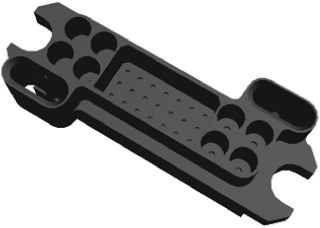

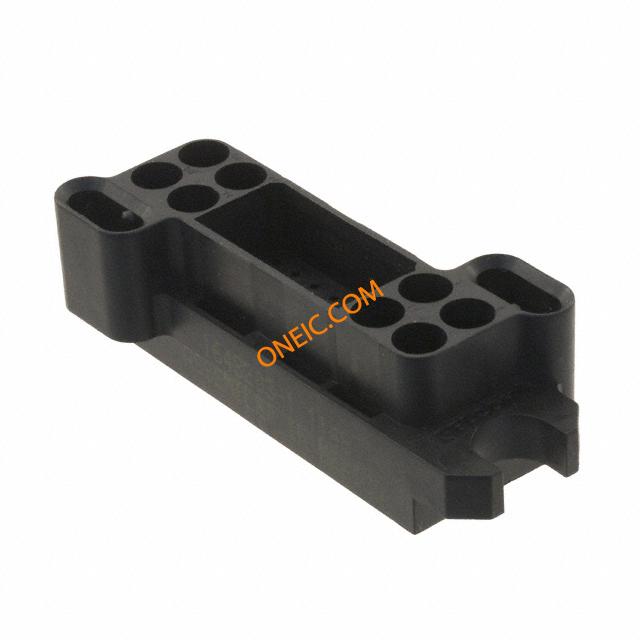

1648203-1
| 制造商 | |
| 描述 | Conn Housing PIN 29 POS Crimp ST High Power Drawer - Elcon CONN PIN LOWER DRAWER 12/20/12 Elcon,lower drawer,hsng,plug,29way Heavy Duty Power Connectors PIN HOUSING CONN SIZE 12 20 Conn Housing PIN 29 POS Crimp ST Product Highlights:HousingContact Size = 12, 20Drawer Style = LowerPinSize 12 + Size 20 + Size 12 Contact Configuration RECTANGULAR CONNECTOR, PLUG, 29POS CONNECTOR,PIN,HIGHCURRENT,DRAWER,LOWER,SIZE12+SIZE20+SIZE12 TE Connectivity Elcon 系列 29 路 直 公 PCB 壳体 |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 45 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Wave solder capable to 240°C / Wave solder capable to 260°C / Wave solder capabl | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 最大额定电流 | 35 | ||
机械参数
| 颜色 | Black | 深度 | 22.6mm |
| 宽度 | 34.03mm | 长度 | 82.8mm |
| 重量 | 0.00001 | 包装方式 | Bulk |
| 触点尺寸 | 12 / 20 | 触头类型 | Size 12 + Size 20 + Size 12 |
| 外壳颜色 | Black | 安装类型 | Fixed |
| 连接器类型 | Housing for Male Pins | 接触镀层 | :- |
| 安装样式 | Straight | 排数 | 3 |
| 连接器样式 | Plug | 连接器用途 | Plug |
| 插入力 | Male | 触头材料 | :- |
| 壳体材料 | Thermoplastic - GF | 主要材料 | Drawer |
| 尺寸/外形 | 12, 20 | 第一触头极性 | :Pin |
| 触点数 | 29 | 接触件端接 | :Crimp |
| 位数 | 29 (21 + 8 Power) | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug |
| 连接器性别 | Male | 系列 | ELCON |
| 产品特性 | Mating Guide | 预加载 | No |
| 制造商全称 | Elcon | 产品子类型 | Connector |
| 抽屉总数 | Lower | 适用产品/相关产品 | Power Connector |
