点击放大查看

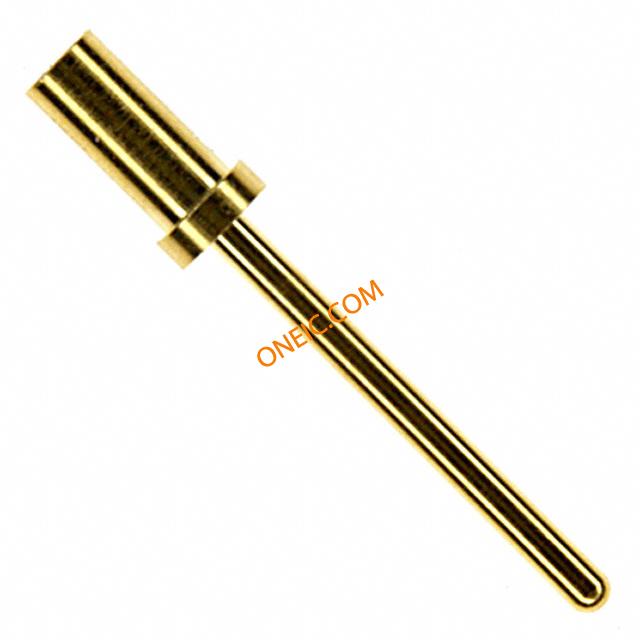

1650155-1
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount High Current ELCON Drawer Connectors CONN PIN #20 CRIMP 10GOLD Contact, Pin, Size 20, Crimp, Drawer Heavy Duty Power Connectors PIN CONTACT SIZE 20 Contact PIN Crimp ST Cable Mount Product Highlights:ContactContact Size = 20PinTermination Type = Crimp (Standard)Not Hot Pluggable CONTACT, CRIMP, PLUG, 20, 18AWG CONTACT,PIN,HIGHCURRENTELCONDRAWER,SIZE20,CRIMP TE Connectivity ELCON Drawer 系列 公 压接接线端子, 压接, 镀金镀镍触点 701-14-02109=CONTACT,PIN,#20 |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 最大额定电流 | 5 A | ||
机械参数
| 间距 | Not Required mm | 重量 | 0.005 |
| 包装方式 | Bulk | 导线线规 | 20 AWG |
| 端接方式 | Crimp | 触点尺寸 | :20 |
| 触头类型 | Power | 安装类型 | Straight |
| 插针或插孔 | Pin | 连接器类型 | Connector Power |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 插入力 | Male | 触头材料 | Copper Alloy |
| 壳体材料 | Not Required | 端接样式 | Crimp |
| 第一触头极性 | :Pin | 触点数 | 1 POS |
| 接触件端接 | Crimp | 接触镀层厚度 | 10µin (0.25µm) |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | :ELCON | 产品子类型 | Contacts |
| 端口数 | 1 Port | 适用产品/相关产品 | :ELCON Drawer Connectors |
