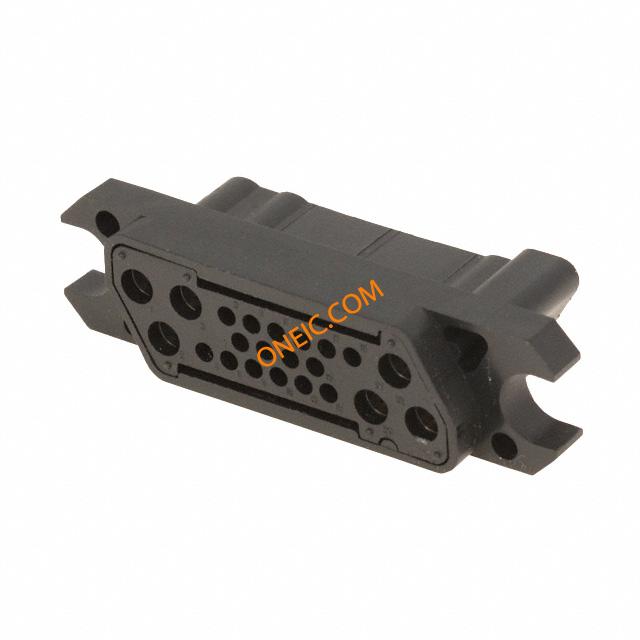

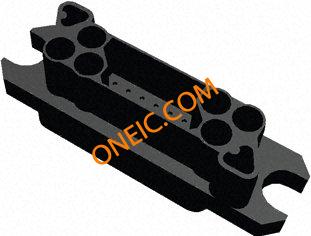

1648110-1
| 制造商 | |
| 描述 | Conn Housing PIN 3/16 POS Crimp ST High Current ELCON Drawer Connectors CONN PLUG SIZE 12+20+12 BLACK Elcon,mini drawer,hsng,plug,22way Heavy Duty Power Connectors SA CONN PIN Conn Housing PIN 3/16 POS Crimp ST Product Highlights:HousingContact Size = 12, 20Drawer Style = MiniPinSize 12 + Size 20 + Size 12 Contact Configuration Elcon,minidrawer,hsng,plug,22way TE Connectivity Elcon 系列 19 路 直 公 PCB 壳体 |
| 分类 |
商业参数
| 其他名称 | 16481101 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 45 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 35 A | ||
机械参数
| 颜色 | Black | 深度 | 24.6mm |
| 宽度 | 20.1mm | 长度 | 75.8mm |
| 包装方式 | Bulk | 方向 | 直 |
| 安装类型 | Straight | 连接器类型 | Housing for Male Pins |
| 安装样式 | Straight | 排数 | 3 |
| 连接器样式 | Mini-Drawer | 连接器用途 | Plug |
| 插入力 | Male | 壳体材料 | PET |
| 主要材料 | Receptacle | 尺寸/外形 | 12, 20 |
| 触点数 | 3/16 | 位数 | 22 (16 + 6 Power) |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PIN | 系列 | ELCON |
| 产品特性 | Mating Guide | 制造商全称 | ELCONSeries |
| 产品子类型 | Plug Housings | 适用产品/相关产品 | Power Connector |
