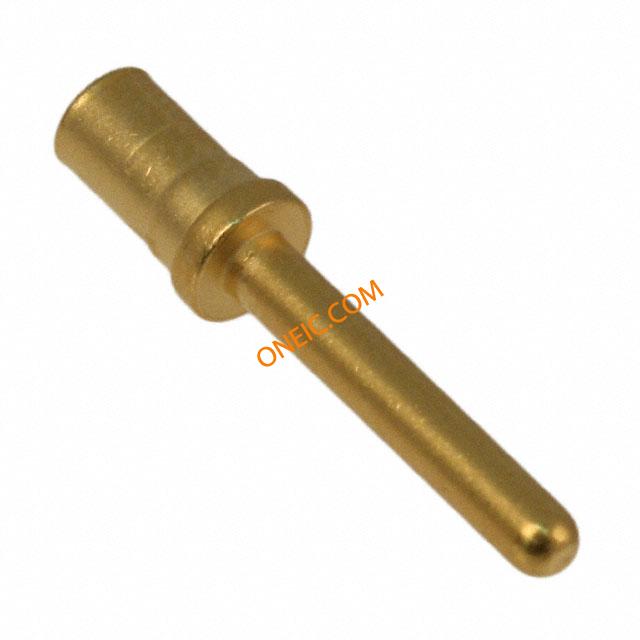

1650156-2
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount Strip ICCON Single-Pole Power Connectors CONN PIN #12 HOT-PLUG CRIMP GOLD Elcon,middle drawer,contact,pin,size12,T Power to the Board CONTACT PIN #12 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactPinPin Type = CrimpPin Length = 14.83 mm CONTACT, CRIMP, PIN, 12AWG, CRIMP 701-15-02109=CONTACT,PIN,#12 TE Connectivity ELCON Drawer 系列 公 压接接线端子, 压接, 镀金镀镍触点 |
| 分类 |
商业参数
| 其他名称 | 16501562 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 00000000 |
| 无铅定义 | Not suitable for lead free processing | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 间距 | Not Required mm | 重量 | 0 |
| 包装方式 | Bulk | 导线线规 | 12 AWG |
| 端接方式 | Crimp | 触点尺寸 | 12 |
| 触头类型 | Power | 引脚长度（针脚） | 14.83 [0.584] |
| 安装类型 | Straight | 插针或插孔 | Pin |
| 连接器类型 | Connector Power | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 触头材料 | Copper Alloy |
| 壳体材料 | Not Required | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 12 |
| 接触件端接 | Crimp | 典型触点布局 | Power |
| 接触镀层厚度 | 10µin (0.25µm) | 线规或范围 - AWG | 12 |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | :- | 产品子类型 | Contact |
| 端口数 | 1 Port | 适用产品/相关产品 | :Power Connectors |
