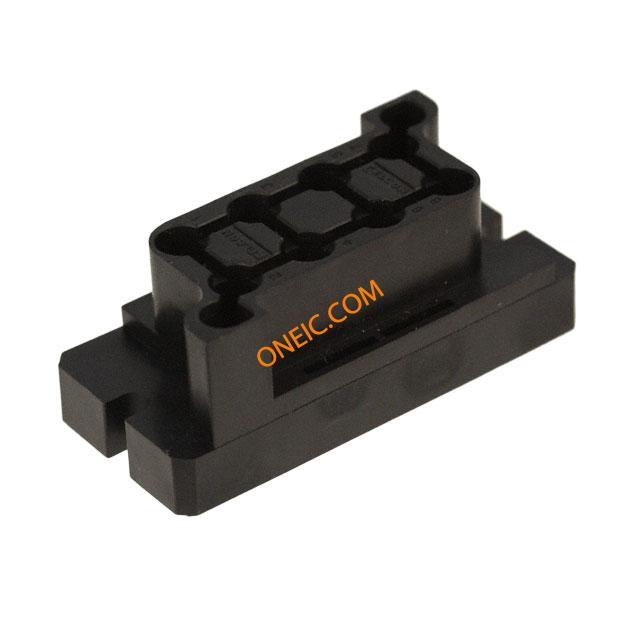

1648127-1
| 制造商 | |
| 描述 | Conn Housing PL 8 POS Crimp ST High Power Drawer - Elcon CONN PLUG SIZE 12 BLACK Conn Housing PL 8 POS Crimp ST Product Highlights:HousingContact Size = 12Drawer Style = HV8PPinSize 12 Contact Configuration PLUG, RECTANGULAR, 8WAY 235-0152-01100 |
| 分类 |
商业参数
| 其他名称 | 16481271 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 最大额定电流 | 35 | ||
机械参数
| 颜色 | Black | 深度 | 27.1 mm |
| 间距 | 0.433" (11.00mm) | 高度 | 28.3 mm |
| 重量 | 0.09 | 包装方式 | Bulk |
| 触点尺寸 | 12 | 触头类型 | Size 12 |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Housing for Male Pins | 接触镀层 | :- |
| 排数 | 2 | 连接器样式 | Plug |
| 连接器用途 | Plug | 触头材料 | :- |
| 壳体材料 | Thermoplastic - GF | 总长度 | 63.5 mm |
| 第一触头极性 | :- | 触点数 | 8 |
| 接触件端接 | :Crimp | 位数 | 8 (Power) |
| 外壳尺寸-插件 | :- | 第一连接器安装类型 | :Panel |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | :ELCON Drawer |
| 产品特性 | Mating Guide | 预加载 | No |
| 制造商全称 | Elcon | 产品子类型 | Connector |
| 抽屉总数 | HV8P | ||
