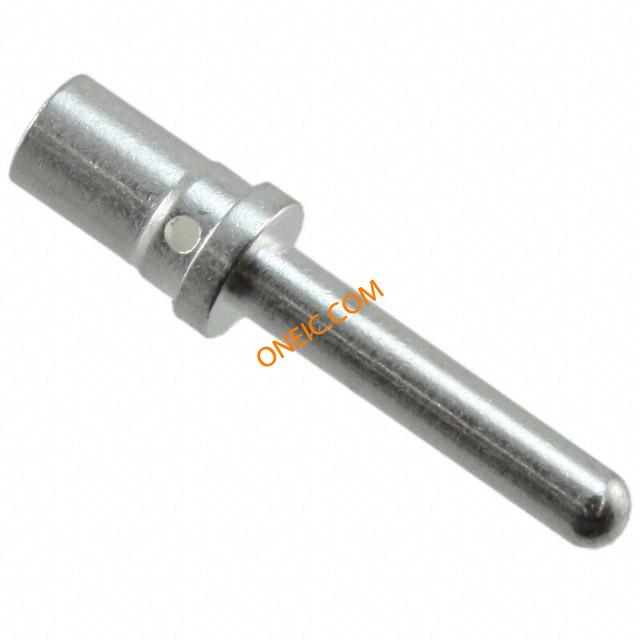

1766196-1
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount High Current ELCON Drawer Connectors CONN CONTACT PIN #12 CRIMP Heavy Duty Power Connectors CONTACT,PIN,#12 1766196-1 Contact PIN Crimp ST Cable Mount Product Highlights:ContactContact Size = 12PinTermination Type = Crimp (Postmate)Not Hot Pluggable CONTACT,PIN,#12 |
| 分类 |
商业参数
| 标准包装数量 | Bag | 工厂包装数量 | 250 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 35A | ||
机械参数
| 镀层 | 银 | 包装方式 | Bulk |
| 绝缘类型 | Without | 导线线规 | 14 – 12 |
| 端接方式 | Crimp | 触头类型 | Power |
| 触点形状 | 直式 | 安装类型 | 压接 |
| 插针或插孔 | Pin | 释放力 | 不带 |
| 端子尺寸 | 12 | 连接器类型 | Connector Power |
| 接触镀层 | Silver | 壳体镀层 | Nickel |
| 插入件材料 | 铜 | 触头材料 | Copper |
| 包装数量 | 250 | 端接样式 | Crimp |
| 接触件端接 | Crimp | 触点镀层 | 银 |
| 接触件表面处理 - 配合 | 银 | 法兰上方插针尺寸 | 2.38 mm [ .094 in ] |
| 接触镀层厚度 | 200µin (5.08µm) | 护套（绝缘）厚度 | 1.27 µm [ 50 µin ] |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 产品特性 | Standard Not Hot Pluggable | 产品子类型 | Contacts |
| 应用细节 | Power | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
