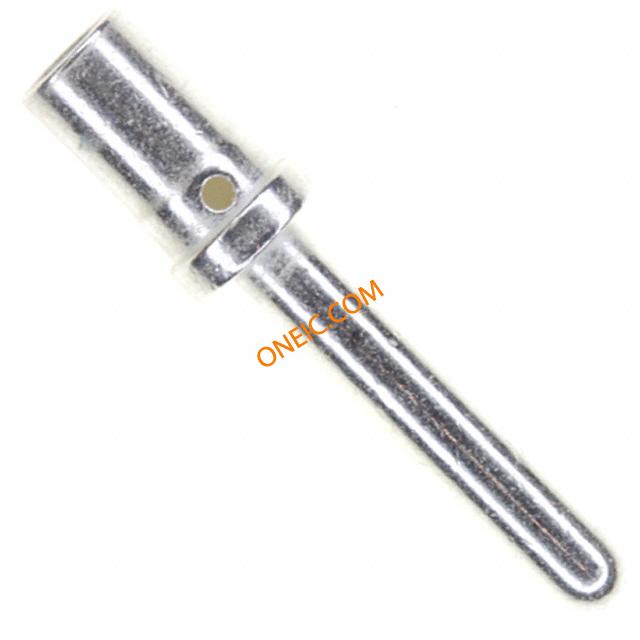

1766193-1
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount High Current ELCON Drawer Connectors CONN PIN #12 CRIMP SILVER Heavy Duty Power Connectors CONTACT PIN #12 Contact PIN Crimp ST Cable Mount Product Highlights:ContactContact Size = 12PinTermination Type = Crimp (Standard)Not Hot Pluggable CONTACT,PIN,HIGHCURRENTELCONDRAWER,SIZE12,CRIMP CONTACT,PIN,SIZE #12 |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 35A | ||
机械参数
| 间距 | Not Required mm | 镀层 | 银 |
| 包装方式 | Bulk | 绝缘类型 | Without |
| 导线线规 | 12 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 触点形状 | 直式 |
| 安装类型 | Straight | 插针或插孔 | Pin |
| 释放力 | 不带 | 端子尺寸 | 12 |
| 连接器类型 | Connector Power | 接触镀层 | Silver Over Nickel |
| 安装样式 | Cable | 壳体镀层 | Nickel |
| 插入件材料 | 铜 | 触头材料 | Copper Alloy |
| 壳体材料 | Not Required | 包装数量 | 500 |
| 端接样式 | Crimp | 触点数 | 1 POS |
| 接触件端接 | Crimp | 触点镀层 | 银 |
| 接触件表面处理 - 配合 | 银 | 法兰上方插针尺寸 | 2.38 mm [ .094 in ] |
| 接触镀层厚度 | 200µin (5.08µm) | 护套（绝缘）厚度 | 1.27 µm [ 50 µin ] |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 产品特性 | Standard Not Hot Pluggable | 产品子类型 | Connectors |
| 端口数 | 1 Port | 应用细节 | Power |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
