点击放大查看

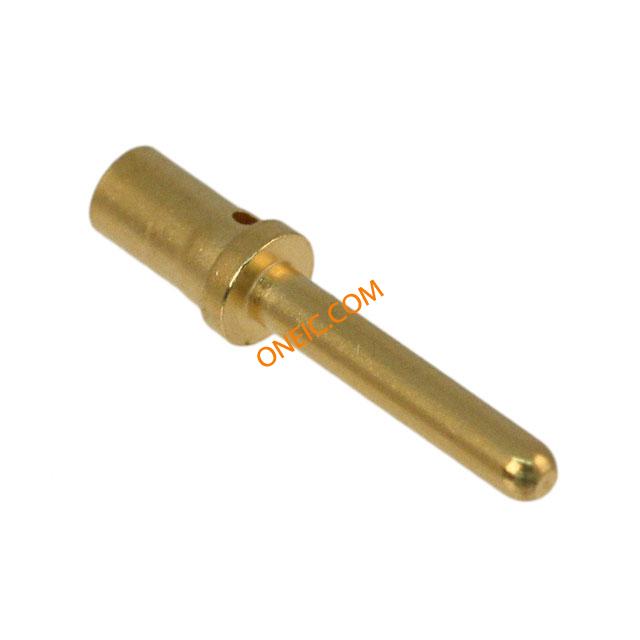

1650153-2
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount Power to the Board CONTACT PIN #12 CONN PIN #12 HOT-PLUG CRIMP GOLD Elcon,middle drawer,contact,pin,size12,S CONTACT, PIN, CRIMP ContactPin,#12NotPlug,Crimp,standard TE Connectivity ELCON Drawer 系列 公 压接接线端子, 压接, 镀金触点 |
| 分类 |
商业参数
| 其他名称 | 16501532 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 重量 | 0.01 | 包装方式 | Bulk |
| 导线线规 | 12 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 插针或插孔 | Pin |
| 连接器类型 | Connector Power | 接触镀层 | Gold Over Nickel |
| 触头材料 | Copper Alloy | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 12 |
| 接触件端接 | Crimp | 典型触点布局 | Power |
| 线规或范围 - AWG | 12 | ||
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | ELCON | 产品子类型 | Connectors |
| 适用产品/相关产品 | PCB Connector | ||
