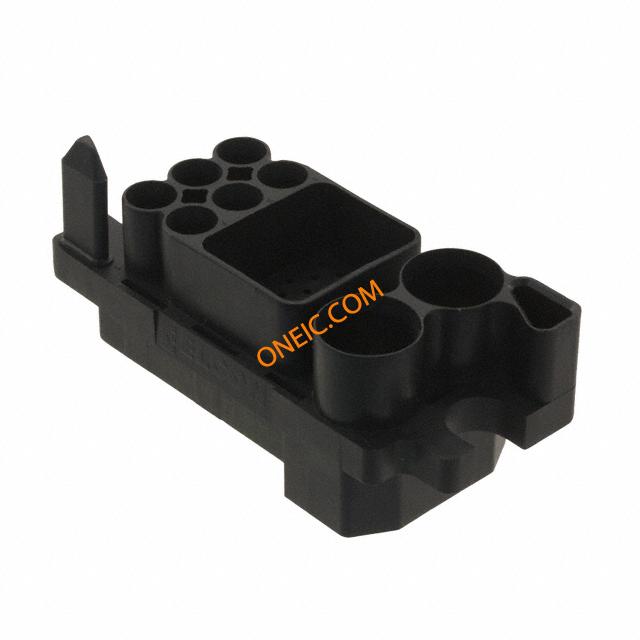

1648151-1
| 制造商 | |
| 描述 | Conn Housing PL 6/32/2 POS Crimp ST Cable Mount High Power Drawer - Elcon CONN PIN MID-DWR 4/20/12 FLT-MNT Heavy Duty Power Connectors PIN HOUSING CONN SIZE 4 12 20 Conn Housing PL 6/32/2 POS Crimp ST Cable Mount Product Highlights:ConnectorWithout ContactsHousing Gender = PlugContact Size = 4, 12, 20Drawer Style = Middle |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 30 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 最大额定电流 | 125 | ||
机械参数
| 颜色 | Black | 包装方式 | Bulk |
| 触点尺寸 | 4 / 12 / 20 | 触头类型 | Size 4 + Size 12 + Size 20 |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Housing for Male Pins | 连接器样式 | Plug |
| 连接器用途 | Plug | 插入力 | Male |
| 壳体材料 | Thermoplastic - GF | 端接样式 | Cable |
| 触点数 | 6/32/2 | 位数 | 40 (32 + 8 Power) |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Elcon |
| 产品特性 | Mating Guide | 预加载 | No |
| 制造商全称 | Elcon | 产品子类型 | Connector |
| 抽屉总数 | Middle | ||
