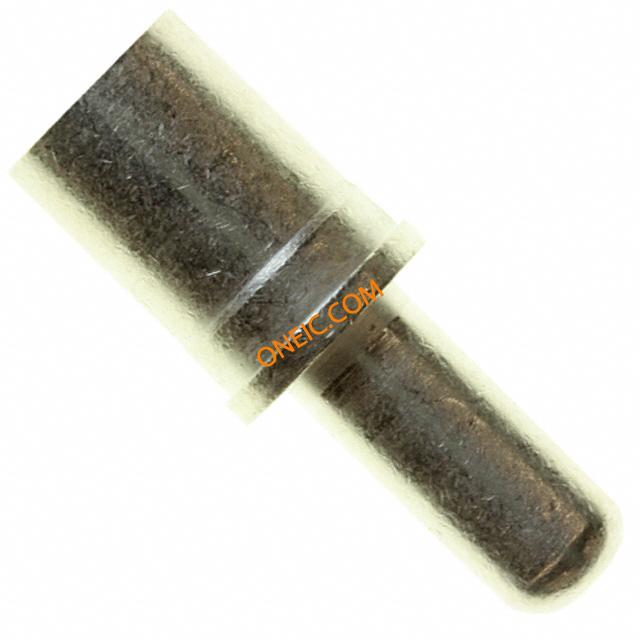

1766232-1
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece High Current ELCON Drawer Connectors CONN PIN #4 CRIMP SILVER Heavy Duty Power Connectors PIN CONTACT SIZE 4 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Size = 4PinTermination Type = Crimp (Standard)Not Hot Pluggable CONTACT,PIN, .25 DIA |
| 分类 |
商业参数
| 其他名称 | A36278 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 250 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 125A | ||
机械参数
| 间距 | Not Required mm | 镀层 | 银 |
| 包装方式 | Bulk | 绝缘类型 | Without |
| 导线线规 | 4 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 触点形状 | 直式 |
| 安装类型 | Straight | 插针或插孔 | Pin |
| 释放力 | 不带 | 端子尺寸 | 4 |
| 连接器类型 | Connector Power | 接触镀层 | Silver |
| 安装样式 | Cable | 壳体镀层 | Nickel |
| 插入件材料 | 铜合金 | 触头材料 | Copper Alloy |
| 壳体材料 | Not Required | 包装数量 | 250 |
| 端接样式 | 插针 | 触点数 | 1 POS |
| 接触件端接 | Crimp | 触点镀层 | 银 |
| 接触件表面处理 - 配合 | 银 | 法兰上方插针尺寸 | .64 mm [ .025 in ] |
| 接触镀层厚度 | 200µin (5.08µm) | 护套（绝缘）厚度 | 1 µm [ 40 µin ] |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 产品特性 | Standard Not Hot Pluggable | 产品子类型 | 端子 |
| 端口数 | 1 Port | 应用细节 | Power |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
