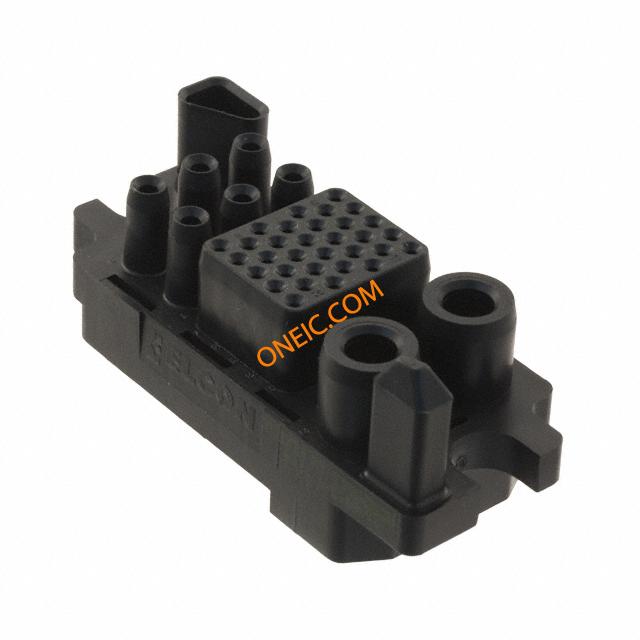

1648156-1
| 制造商 | |
| 描述 | Conn Housing RCP 2/6/32 POS Crimp ST Panel Mount High Power Drawer - Elcon CONN SKT MID-DWR 4/20/12 FLT-MNT Heavy Duty Power Connectors SCKT HOUSING CONN SIZE 4 12 20 Conn Housing RCP 2/6/32 POS Crimp ST Panel Mount Product Highlights:HousingContact Size = 4, 12, 20Drawer Style = MiddleSocketSize 4 + Size 12 + Size 20 Contact Configuration |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 30 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 最大额定电流 | 125 | ||
机械参数
| 颜色 | Black | 包装方式 | Bulk |
| 触点尺寸 | 4 / 12 / 20 | 触头类型 | Size 4 + Size 12 + Size 20 |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Housing for Female Sockets | 连接器样式 | Receptacle |
| 连接器用途 | Receptacle | 插入力 | Female |
| 壳体材料 | Thermoplastic - GF | 触点数 | 2/6/32 |
| 位数 | 40 (32 + 8 Power) | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 产品特性 | Guide Pin |
| 预加载 | No | 制造商全称 | Elcon |
| 产品子类型 | Connector | 抽屉总数 | Middle |
