点击放大查看

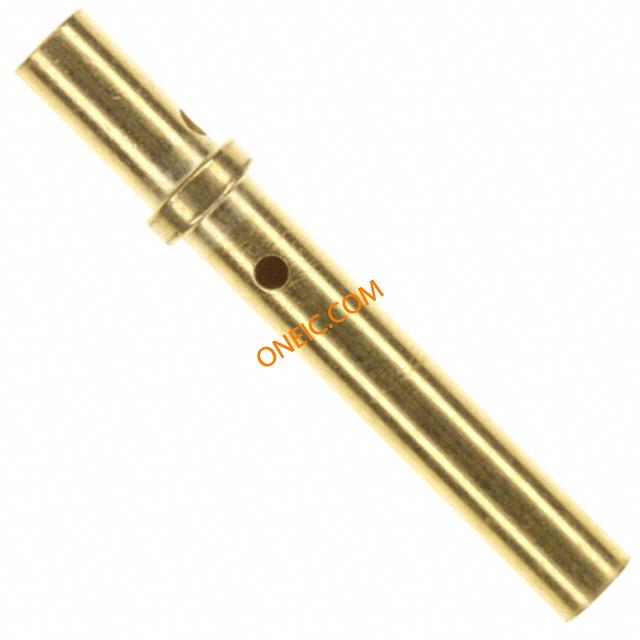

1648325-1

制造商	TE Connectivity Ltd.
描述	Contact SKT Crimp ST Cable Mount Strip High Current ELCON Drawer Connectors CONN SOCKET #20 CRIMP GOLD Contact, Sckt, Size 20, Crimp, Drawer Heavy Duty Power Connectors SCKT CONTACT SIZE 20 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Size = 20SocketTermination Type = Crimp (Standard)Not Hot Pluggable CONTACT,SOCKET,HIGHCURRENTELCONDRAWER,SIZE20,CRIMP Low Insertion Force 5 A #20 Crimp Contact Socket TE Connectivity ELCON Drawer 系列母压接接线端子, 压接, 镀金镀镍触点 702-92-01109=CONTACT,SKT,#20
分类	电感元件固定电感器固定电感器

对参数有疑问？问 AI 助手

商业参数

产品类别	Heavy Duty Power Connectors	标准包装数量	Bulk
工厂包装数量	1000

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

最大额定电流

机械参数

间距	Not Required mm	镀层	金
包装方式	Bulk	导线线规	20 AWG
端接方式	Crimp	触头类型	Power
触点形状	直式	安装类型	Straight
插针或插孔	Socket	释放力	不带
端子尺寸	20	电缆直径	0.6mm²
连接器类型	Connector Power	接触镀层	Gold
安装样式	Cable	外壳材料（壳体）	镍
插入件材料	铜	插入力	Female
触头材料	Copper	壳体材料	Not Required
包装数量	1000	端接排数	压接
端接样式	Crimp	触点数	1 POS
接触件端接	Crimp	触点镀层	金
绝缘材料 - 材质	不带	接触件表面处理 - 配合	金
接触镀层厚度	30µin (0.76µm)	线规或范围 - AWG	20AWG
护套（绝缘）厚度	1 µm [ 40 µin ]

产品信息

类型	Power	连接器性别	SKT
系列	ELCON Drawer	主要用途	标准非热插拔
产品子类型	Contacts	端口数	1 Port
应用细节	Power

环境参数

测试温度

标准件 - 非灼热丝

工作温度

-55 – 105 °C [ -67 – 221 °F ]

文档与媒体

在线文档

1648325-1?RQPN=1648325-1

相关型号

1648208-1

te connectivity / amp

Conn Housing RCP 4/21 POS Crimp ST Cable Mount High Current ELCON Drawer Connectors CONN SOCKT LOWER DRAWER 16/20/12 Heavy Duty Power Connectors SCKT HOUSING CONN SIZE 12 16 20 1648208-1 Conn Housing RCP 4/21 POS Crimp ST Cable Mount Product Highlights:HousingContact Size = 12, 16, 20Drawer Style = LowerSocketSize 12 + Size 20 + Size 16 Contact Configuration

¥41.3440

详情

1648578-1

te connectivity / amp

Conn Housing RCP Crimp ST Panel Mount High Current ELCON Drawer Connectors CONN RCPT SIZE 0/12/20 BLACK Conn Housing SKT ST Conn Housing RCP Crimp ST Panel Mount Product Highlights:HousingContact Size = 0, 12, 20Drawer Style = DoubleSocketSize 0 + Size 12 + Size 20 Contact Configuration RECTANGULAR POWER CONNECTOR, RCPT, 39POS 296-0049-01100 TE Connectivity Elcon 系列直母 PCB 连接器外壳

¥260.5760

详情

1648116-1

te connectivity / amp

Conn Housing RCP 3/16 POS Crimp ST Panel Mount High Power Drawer - Elcon CONN SOCKT MINI DWR 16/20/16 PNL Heavy Duty Power Connectors SCKT HOUSING CONN SIZE 16 20 Conn Housing RCP 3/16 POS Crimp ST Panel Mount Product Highlights:HousingContact Size = 16, 20Drawer Style = MiniSocketSize 16 + Size 20 + Size 16 Contact Configuration

¥29.2400

详情

1648157-1

te connectivity / amp

Conn Housing RCP 6/32/2 POS Crimp ST Cable Mount High Power Drawer - Elcon CONN SOCKET MID-DWR 4/20/12 PCB Elcon,middle drawer,hsng,rcp,40way Heavy Duty Power Connectors SCKT HOUSING CONN SIZE 4 12 20 Conn Housing RCP 6/32/2 POS Crimp ST Cable Mount Product Highlights:HousingContact Size = 4, 12, 20Drawer Style = MiddleSocketSize 4 + Size 12 + Size 20 Contact Configuration Elcon,middledrawer,hsng,rcp,40way TE Connectivity Elcon 系列 40针插座电源连接器外壳 , 电缆安装

¥61.1320

详情

1648186-1

te connectivity / amp

Conn Housing SKT 2/32/12/6 POS Crimp ST High Power Drawer - Elcon 292-10-01100=SA CONN,SKT Conn Housing SKT 2/32/12/6 POS Crimp ST Product Highlights:HousingContact Size = 0, 12, 16, 20Drawer Style = TopSocketSize 0 + Size 12 + Size 16 + Size 20 Contact Configuration

¥105.8760

详情

1648156-1

te connectivity / amp

Conn Housing RCP 2/6/32 POS Crimp ST Panel Mount High Power Drawer - Elcon CONN SKT MID-DWR 4/20/12 FLT-MNT Heavy Duty Power Connectors SCKT HOUSING CONN SIZE 4 12 20 Conn Housing RCP 2/6/32 POS Crimp ST Panel Mount Product Highlights:HousingContact Size = 4, 12, 20Drawer Style = MiddleSocketSize 4 + Size 12 + Size 20 Contact Configuration

¥62.1520

详情

1648207-1

te connectivity / amp

Conn Housing RCP 4/21 POS Crimp ST Cable Mount Heavy Duty Power Connectors SCKT HOUSING CONN SIZE 16 20 High Current ELCON Drawer Connectors CONN SOCKET LOWER DRAWR 16/20/16

¥41.6160

详情

1648206-1

te connectivity / amp

Conn Housing SKT 4/21 POS Crimp ST Cable Mount High Current ELCON Drawer Connectors CONN SOCKET LOWER DRAWR 12/20/12 Elcon,lower drawer,hsng,skt,29way Heavy Duty Power Connectors SCKT HOUSING CONN SIZE 12 20 Conn Housing SKT 4/21 POS Crimp ST Cable Mount Product Highlights:HousingContact Size = 12, 20Drawer Style = LowerSocketSize 12 + Size 20 + Size 12 Contact Configuration CONNECTOR,SOCKET,HIGHCURRENT,DRAWER,LOWER,SIZE12+SIZE20+SIZE12 TE Connectivity Elcon 系列 25针插座电源连接器外壳 , 电缆安装

¥35.8360

详情

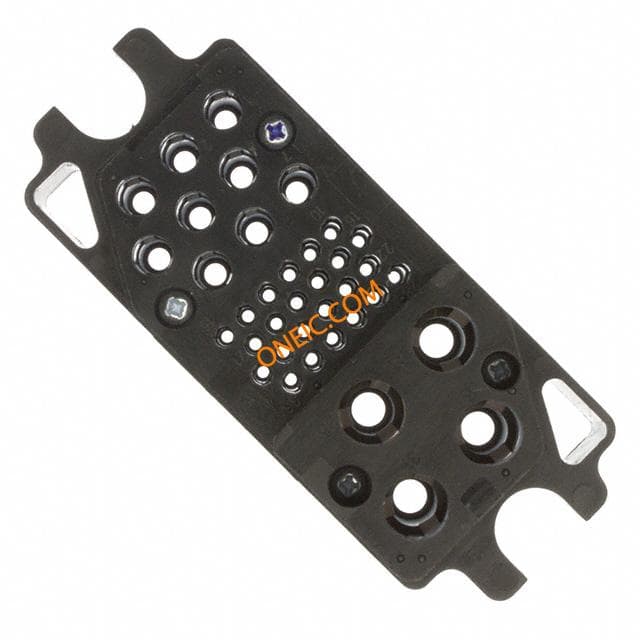

6648167-1
