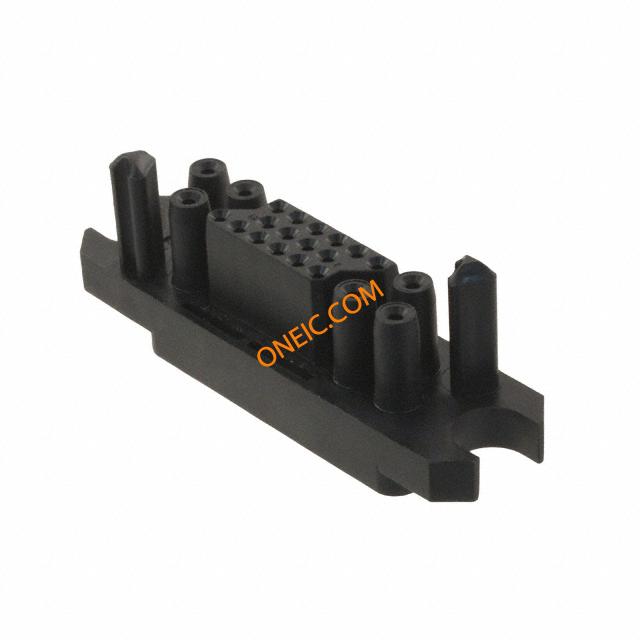

1648116-1
| 制造商 | |
| 描述 | Conn Housing RCP 3/16 POS Crimp ST Panel Mount High Power Drawer - Elcon CONN SOCKT MINI DWR 16/20/16 PNL Heavy Duty Power Connectors SCKT HOUSING CONN SIZE 16 20 Conn Housing RCP 3/16 POS Crimp ST Panel Mount Product Highlights:HousingContact Size = 16, 20Drawer Style = MiniSocketSize 16 + Size 20 + Size 16 Contact Configuration |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 45 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 最大额定电流 | 35 | ||
机械参数
| 颜色 | Black | 包装方式 | Bulk |
| 触点尺寸 | 16 / 20 | 触头类型 | Size 16 + Size 20 + Size 16 |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Housing for Female Sockets | 连接器样式 | Receptacle |
| 连接器用途 | Receptacle | 插入力 | Female |
| 壳体材料 | Polyester GF | 端接样式 | Cable |
| 触点数 | 3/16 | 位数 | 22 (16 + 6 Power) |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Elcon |
| 产品特性 | Guide Pin | 预加载 | No |
| 制造商全称 | Elcon | 产品子类型 | Connector |
| 抽屉总数 | Mini | ||
