1648382-1

制造商	TE Connectivity Ltd.

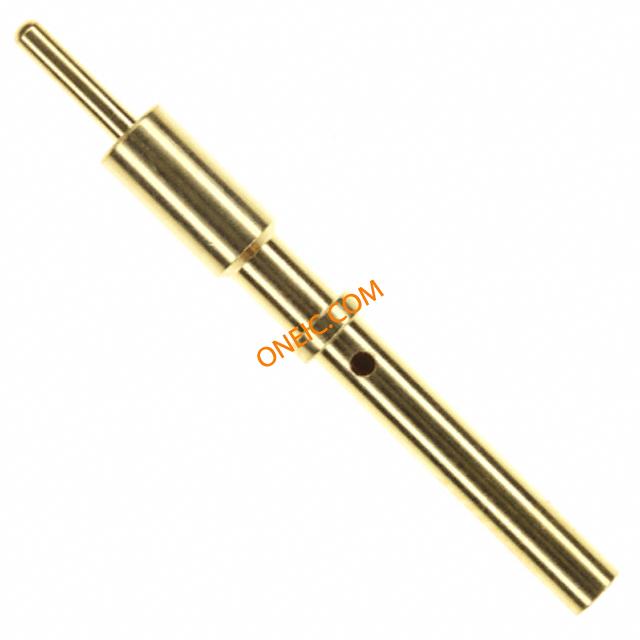

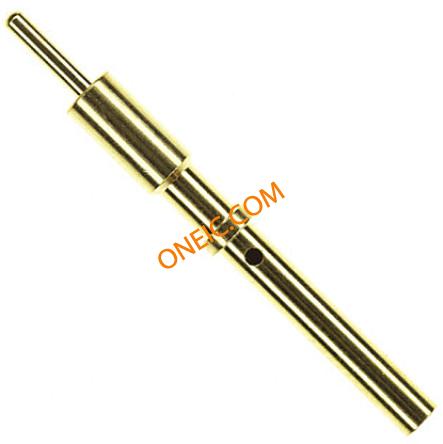

描述	Contact PIN Solder ST Cable Mount Strip High Current ELCON Drawer Connectors CONN SOCKET #20 PCB ELCON Drawer Socket Contact size 20 Heavy Duty Power Connectors SCKT CONTACT SIZE 20 Contact PIN Solder ST Cable Mount Strip Product Highlights:ContactContact Size = 20SocketTermination Type = PCB (Standard)Not Hot Pluggable ContactSocket,20,PCB(standard),NotHotPluggable Size 20 Socket High Current ELCON Drawer Connector 708-68-01109=CONTACT,SKT,#20
分类	电感元件固定电感器固定电感器

对参数有疑问？问 AI 助手

商业参数

产品类别	Heavy Duty Power Connectors	标准包装数量	Bulk
工厂包装数量	1000

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

最大额定电流

机械参数

间距	Not Required mm	镀层	金
包装方式	Bulk	绝缘类型	Uninsulated
导线线规	24 – 20	端接方式	Solder
触头类型	Power	触点形状	直式
安装类型	Straight	插针或插孔	Socket
释放力	不带	端子尺寸	20
连接器类型	Connector Power	接触镀层	Gold
安装样式	Cable	外壳材料（壳体）	镍
插入件材料	铜	插入力	Female
触头材料	Copper	壳体材料	Not Required
包装数量	1000	端接样式	插座
触点数	1 POS	接触件端接	Solder, PCB
触点镀层	金	绝缘材料 - 材质	不带
接触件表面处理 - 配合	金	接触镀层厚度	30µin (0.76µm)
护套（绝缘）厚度	1 µm [ 40 µin ]

产品信息

类型	Power	连接器性别	PIN
已删除	Compliant	主要用途	标准非热插拔
产品子类型	Contacts	端口数	1 Port
应用细节	Power

环境参数

测试温度

标准件 - 非灼热丝

工作温度

-55 – 105 °C [ -67 – 221 °F ]
