1648208-1
| 制造商 | |
| 描述 | Conn Housing RCP 4/21 POS Crimp ST Cable Mount High Current ELCON Drawer Connectors CONN SOCKT LOWER DRAWER 16/20/12 Heavy Duty Power Connectors SCKT HOUSING CONN SIZE 12 16 20 1648208-1 Conn Housing RCP 4/21 POS Crimp ST Cable Mount Product Highlights:HousingContact Size = 12, 16, 20Drawer Style = LowerSocketSize 12 + Size 20 + Size 16 Contact Configuration |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 45 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 35 A | ||
机械参数
| 颜色 | Black | 包装方式 | Bulk |
| 安装类型 | Straight | 连接器类型 | Housing for Female Sockets |
| 排数 | 3 | 连接器样式 | Drawer, Lower |
| 连接器用途 | Receptacle | 插入力 | Female |
| 壳体材料 | Thermoplastic | 触点数 | 4/21 |
| 位数 | 29 (21 + 8 Power) | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 产品特性 | Guide Pin |
| 产品子类型 | Connectors | ||
文档与媒体
相关型号
1648384-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip High Current ELCON Drawer Connectors CONN SOCKET #12 CRIMP HOT-PLUG Elcon,middle drawer,contact,skt,size12,K Heavy Duty Power Connectors SCKT CONTACT SIZE 12 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Size = 12SocketTermination Type = Crimp (Standard)Hot Pluggable Elcon,middledrawer,contact,skt,size12,K TE Connectivity ELCON Drawer 系列 母 压接接线端子, 压接, 镀金镀镍触点 708-73-01109=SA CONTACT,SKT
1648382-1
te connectivity / amp
Contact PIN Solder ST Cable Mount Strip High Current ELCON Drawer Connectors CONN SOCKET #20 PCB ELCON Drawer Socket Contact size 20 Heavy Duty Power Connectors SCKT CONTACT SIZE 20 Contact PIN Solder ST Cable Mount Strip Product Highlights:ContactContact Size = 20SocketTermination Type = PCB (Standard)Not Hot Pluggable ContactSocket,20,PCB(standard),NotHotPluggable Size 20 Socket High Current ELCON Drawer Connector 708-68-01109=CONTACT,SKT,#20
6648383-1
te connectivity / amp
Contact SKT Solder ST Thru-Hole High Current ELCON Drawer Connectors CONN SOCKET #16 PCB Heavy Duty Power Connectors SCKT CONTACT SIZE 16 6648383-1 null CONTACT,SKT,SIZE #16
1648325-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip High Current ELCON Drawer Connectors CONN SOCKET #20 CRIMP GOLD Contact, Sckt, Size 20, Crimp, Drawer Heavy Duty Power Connectors SCKT CONTACT SIZE 20 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Size = 20SocketTermination Type = Crimp (Standard)Not Hot Pluggable CONTACT,SOCKET,HIGHCURRENTELCONDRAWER,SIZE20,CRIMP Low Insertion Force 5 A #20 Crimp Contact Socket TE Connectivity ELCON Drawer 系列 母 压接接线端子, 压接, 镀金镀镍触点 702-92-01109=CONTACT,SKT,#20

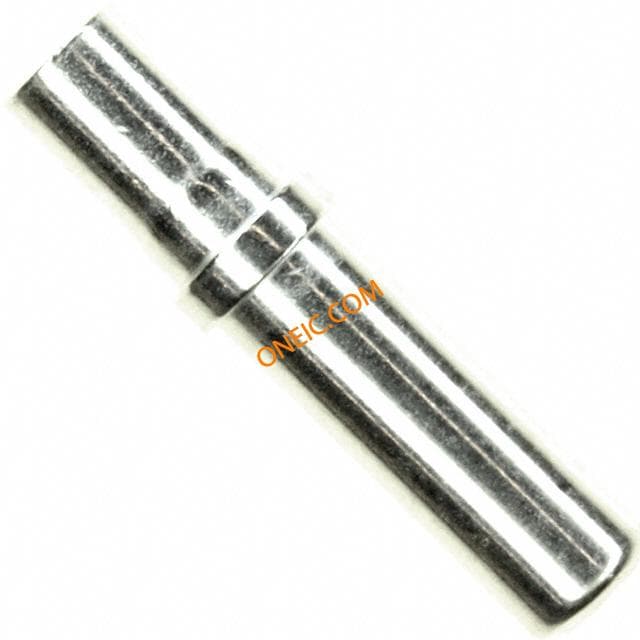

6648318-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip High Current ELCON Drawer Connectors CONN SOCKET #12 CRIMP REMOVABLE Contact, Socket, Size 12, crimp, Drawer Heavy Duty Power Connectors SCKT CONTACT SIZE 12 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Size = 12SocketTermination Type = Crimp (Standard)Not Hot Pluggable CONTACT,SOCKET,HIGHCURRENTELCONDRAWER,SIZE12,CRIMP TE Connectivity ELCON Drawer 系列 母 压接接线端子, 压接, 镀金触点 CONTACT,SKT,#12

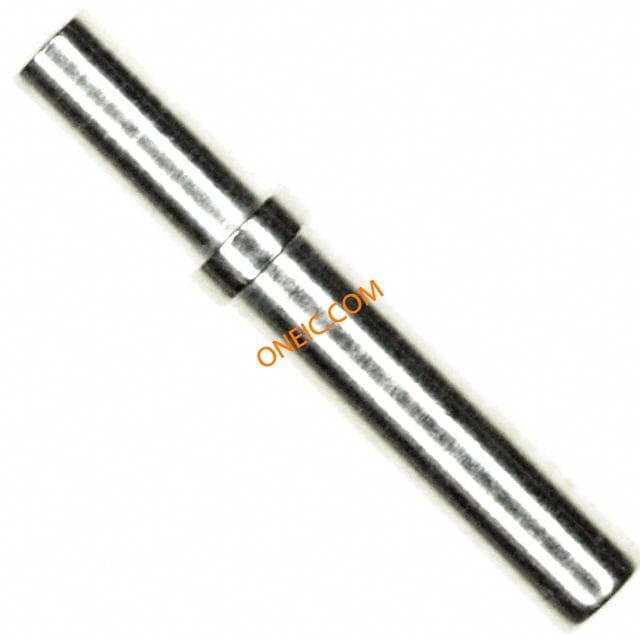

6648319-1
