点击放大查看

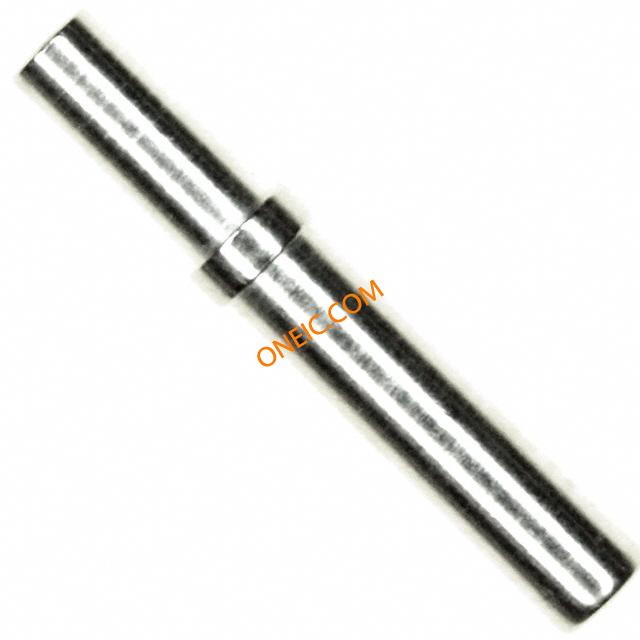

6648319-1
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Strip High Current ELCON Drawer Connectors CONN SOCKET #16 CRIMP Elcon,top drawer,contact,skt,size 16,D Heavy Duty Power Connectors SCKT CONTACT SIZE 16 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Size = 16SocketTermination Type = Crimp (Standard)Not Hot Pluggable CONTACT, SOCKET, 16AWG, CRIMP Contact,SocketCrimp(standard),15A,contactsize16 16 Contact Size Crimp (Standard) Socket High Current ELCON Drawer Connector TE Connectivity ELCON Drawer 系列 母 压接接线端子, 压接, 镀金触点 CONTACT,SKT |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 00000000 |
电气参数
| 最大额定电流 | 15A | ||
机械参数
| 间距 | Not Required mm | 重量 | 0 |
| 包装方式 | Bulk | 导线线规 | 16 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 连接器类型 | Connector Power | 接触镀层 | Gold |
| 安装样式 | Cable | 触头材料 | Copper Alloy |
| 壳体材料 | Not Required | 第一触头极性 | :Socket |
| 触点数 | 1 POS | 接触件端接 | Crimp |
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 系列 | :ELCON | 产品子类型 | Contacts |
| 端口数 | 1 Port | 适用产品/相关产品 | :High Current ELCON Drawer Connectors |
