点击放大查看

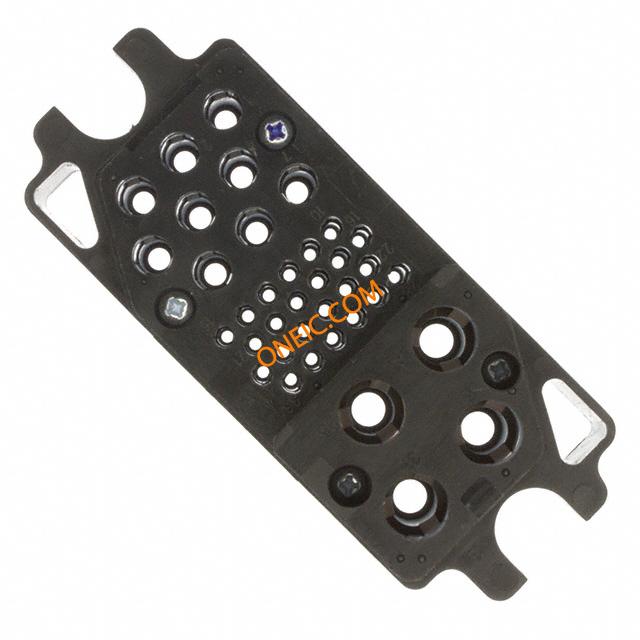

6648167-1
| 制造商 | |
| 描述 | Conn Housing SKT 9/24 POS Crimp ST Panel Mount High Current ELCON Drawer Connectors CONN SOCKET MID-DWR 8/20/12 PCB Heavy Duty Power Connectors SCKT HOUSING CONN SIZE 8 12 20 Conn Housing SKT 9/24 POS Crimp ST Panel Mount Product Highlights:HousingContact Size = 8, 12, 20Drawer Style = MiddleSocketSize 8 + Size 12 + Size 20 Contact Configuration CONN,SKT,75AMPMIDDLEDWR |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 30 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 75 A | ||
机械参数
| 颜色 | Black | 包装方式 | Bulk |
| 安装类型 | Straight | 连接器类型 | Housing for Female Sockets |
| 安装样式 | Straight | 连接器样式 | Drawer, Middle |
| 连接器用途 | Receptacle | 插入力 | Female |
| 壳体材料 | Thermoplastic | 尺寸/外形 | 8, 12, 20 |
| 触点数 | 9/24 | 位数 | 36 (20 + 16 Power) |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | SKT | 产品子类型 | Housings |
文档与媒体
相关型号
1648382-1
te connectivity / amp
Contact PIN Solder ST Cable Mount Strip High Current ELCON Drawer Connectors CONN SOCKET #20 PCB ELCON Drawer Socket Contact size 20 Heavy Duty Power Connectors SCKT CONTACT SIZE 20 Contact PIN Solder ST Cable Mount Strip Product Highlights:ContactContact Size = 20SocketTermination Type = PCB (Standard)Not Hot Pluggable ContactSocket,20,PCB(standard),NotHotPluggable Size 20 Socket High Current ELCON Drawer Connector 708-68-01109=CONTACT,SKT,#20
1648162-1
te connectivity / amp
Conn Housing PIN 4/24/9 POS Crimp ST Panel Mount High Power Drawer - Elcon CONN PIN MID-DRAWR 8/20/12 CRIMP Heavy Duty Power Connectors PIN HOUSING CONN SIZE 8 12 20 Conn Housing PIN 4/24/9 POS Crimp ST Panel Mount Product Highlights:HousingContact Size = 8, 12, 20Drawer Style = MiddlePinSize 8 + Size 12 + Size 20 Contact Configuration 261-0006-01100
6648383-1
te connectivity / amp
Contact SKT Solder ST Thru-Hole High Current ELCON Drawer Connectors CONN SOCKET #16 PCB Heavy Duty Power Connectors SCKT CONTACT SIZE 16 6648383-1 null CONTACT,SKT,SIZE #16
1648325-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip High Current ELCON Drawer Connectors CONN SOCKET #20 CRIMP GOLD Contact, Sckt, Size 20, Crimp, Drawer Heavy Duty Power Connectors SCKT CONTACT SIZE 20 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Size = 20SocketTermination Type = Crimp (Standard)Not Hot Pluggable CONTACT,SOCKET,HIGHCURRENTELCONDRAWER,SIZE20,CRIMP Low Insertion Force 5 A #20 Crimp Contact Socket TE Connectivity ELCON Drawer 系列 母 压接接线端子, 压接, 镀金镀镍触点 702-92-01109=CONTACT,SKT,#20

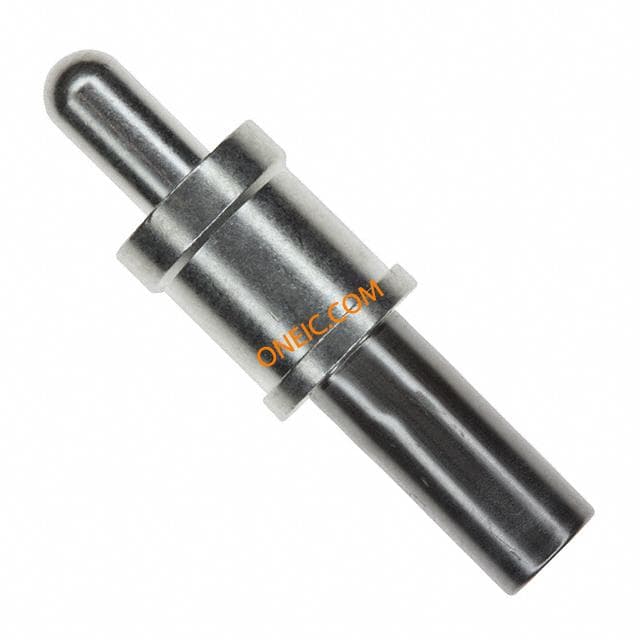

6648400-1
