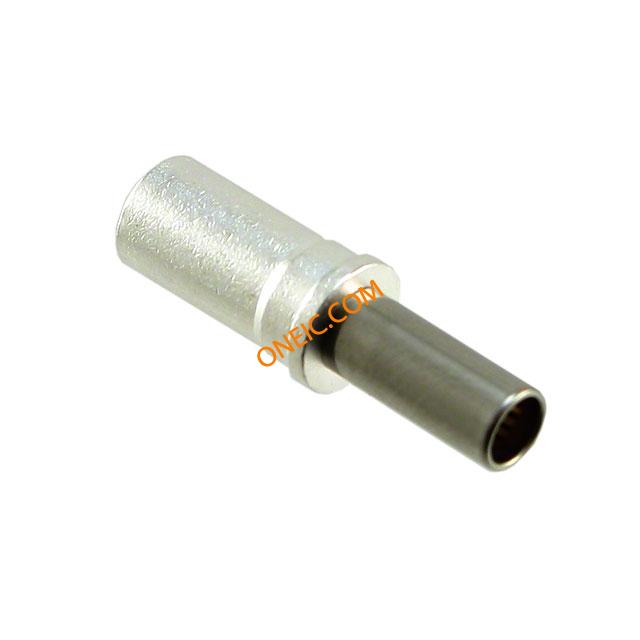

点击放大查看
6648317-1
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Strip ICCON Single-Pole Power Connectors CONN SOCKET #8 CRIMP REMOVABLE Power to the Board SZ #8 SOCKET CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketPin Type = CrimpSearch Keywords:ICCON Single Pole Power Connectors DIP Footprint high current quick connect/disconnect CROWN Band CONTACT,SOCKET,SIZE #8 |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 250 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | UL 1977 | 无铅定义 | Not relevant for lead free process |
| 标准编号 | UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 最大额定电流 | 35A | ||
机械参数
| 间距 | Not Required mm | 宽度 | 6.96 mm [ .274 in ] |
| 高度 | 7.75 mm [ .305 in ] | 长度 | 25.3 mm [ .996 in ] |
| 镀层 | 银 | 包装方式 | Bulk |
| 电缆类型 | 分离式导线 | 绝缘类型 | Without |
| 引脚样式 | 圆形插座 | 导线线规 | 8 AWG |
| 端接方式 | Crimp | 触点尺寸 | 8 |
| 触头类型 | Power | 触点形状 | 直式 |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 释放力 | 不带 | 电缆直径 | 13814.67 – 16774.96 |
| 连接器类型 | Connector Power | 接触镀层 | Gold |
| 安装样式 | Cable | 壳体镀层 | Nickel |
| 插入件材料 | 铜 | 触头材料 | Copper |
| 壳体材料 | Not Required | 包装数量 | 250 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 1 POS | 接触件端接 | Crimp |
| 触点镀层 | 银 | 安装孔直径 | 不带 |
| 接触镀层厚度 | 30µin (0.76µm) | 护套（绝缘）厚度 | 1 µm [ 40 µin ] |
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 产品特性 | Standard Not Hot Pluggable | 产品子类型 | Contact |
| 端口数 | 1 Port | 应用细节 | Power |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
