点击放大查看

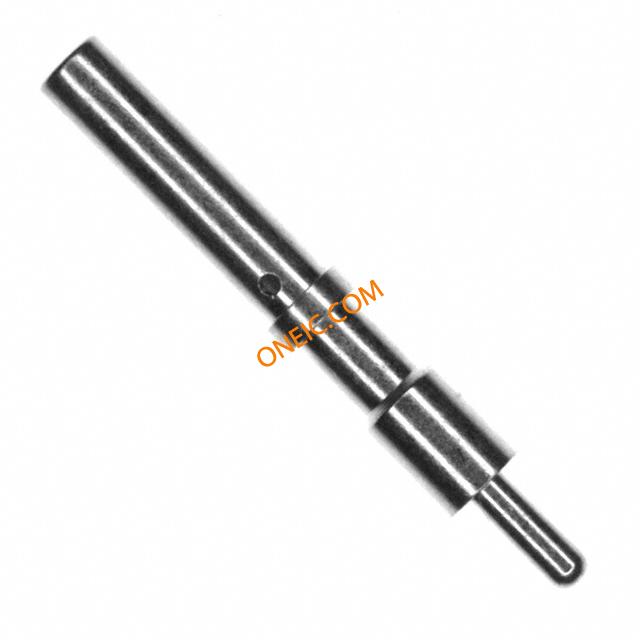

6648383-1
| 制造商 | |
| 描述 | Contact SKT Solder ST Thru-Hole High Current ELCON Drawer Connectors CONN SOCKET #16 PCB Heavy Duty Power Connectors SCKT CONTACT SIZE 16 6648383-1 null CONTACT,SKT,SIZE #16 |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 250 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 15A | ||
机械参数
| 包装方式 | Bulk | 绝缘类型 | Without |
| 端接方式 | Solder | 触头类型 | Power |
| 触点形状 | 直式 | 安装类型 | PCB 安装 |
| 插针或插孔 | Socket | 释放力 | 不带 |
| 端子尺寸 | 16 | 连接器类型 | Connector Power |
| 接触镀层 | Gold Over Nickel | 壳体镀层 | Nickel |
| 插入件材料 | 黄铜合金 | 触头材料 | Brass Alloy |
| 包装数量 | 250 | 端接样式 | 插座 |
| 接触件端接 | Solder, PCB | 接触件表面处理 - 配合 | 银 |
| 接触镀层厚度 | 30µin (0.76µm) | 护套（绝缘）厚度 | 1 µm [ 40 µin ] |
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 产品特性 | Standard Not Hot Pluggable | 产品子类型 | 端子 |
| 应用细节 | Power | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
相关型号
1648208-1
te connectivity / amp
Conn Housing RCP 4/21 POS Crimp ST Cable Mount High Current ELCON Drawer Connectors CONN SOCKT LOWER DRAWER 16/20/12 Heavy Duty Power Connectors SCKT HOUSING CONN SIZE 12 16 20 1648208-1 Conn Housing RCP 4/21 POS Crimp ST Cable Mount Product Highlights:HousingContact Size = 12, 16, 20Drawer Style = LowerSocketSize 12 + Size 20 + Size 16 Contact Configuration
1648116-1
te connectivity / amp
Conn Housing RCP 3/16 POS Crimp ST Panel Mount High Power Drawer - Elcon CONN SOCKT MINI DWR 16/20/16 PNL Heavy Duty Power Connectors SCKT HOUSING CONN SIZE 16 20 Conn Housing RCP 3/16 POS Crimp ST Panel Mount Product Highlights:HousingContact Size = 16, 20Drawer Style = MiniSocketSize 16 + Size 20 + Size 16 Contact Configuration
1648186-1
te connectivity / amp
Conn Housing SKT 2/32/12/6 POS Crimp ST High Power Drawer - Elcon 292-10-01100=SA CONN,SKT Conn Housing SKT 2/32/12/6 POS Crimp ST Product Highlights:HousingContact Size = 0, 12, 16, 20Drawer Style = TopSocketSize 0 + Size 12 + Size 16 + Size 20 Contact Configuration
1648207-1
te connectivity / amp
Conn Housing RCP 4/21 POS Crimp ST Cable Mount Heavy Duty Power Connectors SCKT HOUSING CONN SIZE 16 20 High Current ELCON Drawer Connectors CONN SOCKET LOWER DRAWR 16/20/16
1648469-1
te connectivity / amp
Conn Housing RCP 5 POS 4.72mm Crimp ST High Current (DOMINO) Modular Power Connectors HSG,SKT,MOD D Conn Housing RCP 5 POS 4.72mm Crimp ST Product Highlights:HousingContacts Not PreloadedContact Type = PowerNumber of Positions = 5Contact Size = 16Search Keywords:DOMINO Series Connectors Hot Plug High Current Modular Power Connectors Drawer Connector Blind mate
1643916-1
te connectivity / amp
703-13-00100 Hand Tools INSERT/REMOVAL SZ#16 TOOL INSERTION/REMOVAL SIZE #16 For Use With:Elcon Circular Contacts
1648470-1
te connectivity / amp
Conn Housing RCP 14 POS 4.72mm Crimp ST High Current (DOMINO) Modular Power Connectors CONNECTOR High Current (DOMINO) Modular Power Connectors Product Highlights:HousingContacts Not PreloadedContact Type = PowerNumber of Positions = 14Contact Size = 16Search Keywords:DOMINO Series Connectors Hot Plug High Current Modular Power Connectors Drawer Connector Blind mate

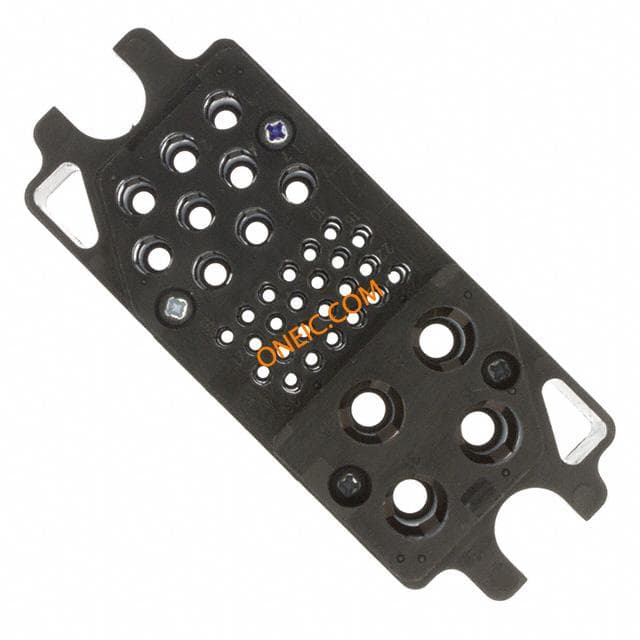

6648167-1
