点击放大查看

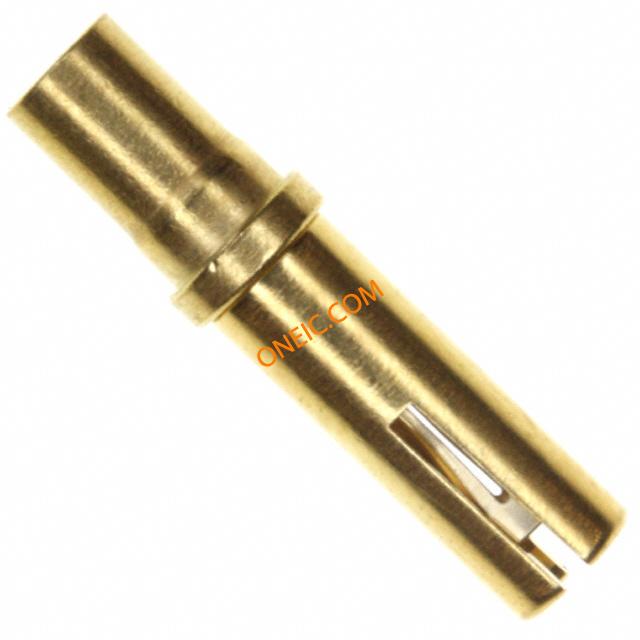

1648384-1

制造商	TE Connectivity Ltd.
描述	Contact SKT Crimp ST Cable Mount Strip High Current ELCON Drawer Connectors CONN SOCKET #12 CRIMP HOT-PLUG Elcon,middle drawer,contact,skt,size12,K Heavy Duty Power Connectors SCKT CONTACT SIZE 12 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Size = 12SocketTermination Type = Crimp (Standard)Hot Pluggable Elcon,middledrawer,contact,skt,size12,K TE Connectivity ELCON Drawer 系列母压接接线端子, 压接, 镀金镀镍触点 708-73-01109=SA CONTACT,SKT
分类	电感元件固定电感器固定电感器

对参数有疑问？问 AI 助手

商业参数

其他名称	A36291	产品类别	Heavy Duty Power Connectors
标准包装数量	Bulk	工厂包装数量	500

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

输入端

最大额定电流

35A

机械参数

间距	Not Required mm	镀层	金
包装方式	Bulk	导线线规	12 AWG
端接方式	Crimp	触头类型	Power
触点形状	直式	安装类型	Straight
插针或插孔	Socket	释放力	不带
端子尺寸	12	电缆直径	2.98mm²
连接器类型	Connector Power	接触镀层	Gold
安装样式	Cable	外壳材料（壳体）	镍
插入件材料	铜合金	插入力	Female
触头材料	Copper Alloy	壳体材料	Not Required
总长度	19.05 mm	包装数量	500
端接排数	压接	端接样式	Crimp
触点数	1 POS	接触件端接	Crimp
触点镀层	金	绝缘材料 - 材质	不带
接触件表面处理 - 配合	金	接触镀层厚度	30µin (0.76µm)
线规或范围 - AWG	12AWG	护套（绝缘）厚度	1 µm [ 40 µin ]

产品信息

类型	Power	连接器性别	SKT
系列	ELCON Drawer	主要用途	热插拔
产品子类型	Contacts	端口数	1 Port
应用细节	Power

环境参数

测试温度

标准件 - 非灼热丝

工作温度

-55 – 105 °C [ -67 – 221 °F ]
