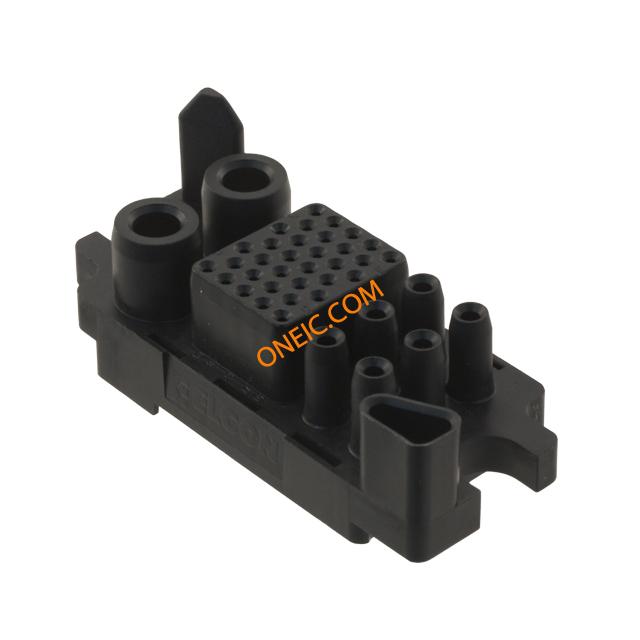

1648157-1
| 制造商 | |
| 描述 | Conn Housing RCP 6/32/2 POS Crimp ST Cable Mount High Power Drawer - Elcon CONN SOCKET MID-DWR 4/20/12 PCB Elcon,middle drawer,hsng,rcp,40way Heavy Duty Power Connectors SCKT HOUSING CONN SIZE 4 12 20 Conn Housing RCP 6/32/2 POS Crimp ST Cable Mount Product Highlights:HousingContact Size = 4, 12, 20Drawer Style = MiddleSocketSize 4 + Size 12 + Size 20 Contact Configuration Elcon,middledrawer,hsng,rcp,40way TE Connectivity Elcon 系列 40针 插座 电源连接器外壳 , 电缆安装 |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 30 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 最大额定电流 | 125 | ||
机械参数
| 颜色 | Black | 深度 | 37.09 mm |
| 高度 | 33.27 mm | 包装方式 | Bulk |
| 方向 | 直 | 触点尺寸 | 4 / 12 / 20 |
| 触头类型 | Size 4 + Size 12 + Size 20 | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Housing for Female Sockets |
| 连接器样式 | Receptacle | 连接器用途 | Receptacle |
| 插入力 | Female | 壳体材料 | Thermoplastic - GF |
| 主要材料 | Receptacle | 端接样式 | Cable |
| 触点数 | 6/32/2 | 位数 | 40 (32 + 8 Power) |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Elcon |
| 产品特性 | Guide Pin | 预加载 | No |
| 制造商全称 | Elcon | 产品子类型 | Connector |
| 抽屉总数 | Middle | ||
文档与媒体
相关型号
1648384-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip High Current ELCON Drawer Connectors CONN SOCKET #12 CRIMP HOT-PLUG Elcon,middle drawer,contact,skt,size12,K Heavy Duty Power Connectors SCKT CONTACT SIZE 12 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Size = 12SocketTermination Type = Crimp (Standard)Hot Pluggable Elcon,middledrawer,contact,skt,size12,K TE Connectivity ELCON Drawer 系列 母 压接接线端子, 压接, 镀金镀镍触点 708-73-01109=SA CONTACT,SKT
1648152-1
te connectivity / amp
Conn Housing PL 6/32/2 POS Crimp ST Cable Mount High Power Drawer - Elcon CONN PIN MID-DRAWER 4/20/12 PCB Elcon,middle drawer,hsng,plug,40way Heavy Duty Power Connectors PIN HOUSING CONN SIZE 4 12 20 Conn Housing PL 6/32/2 POS Crimp ST Cable Mount Product Highlights:HousingContact Size = 4, 12, 20Drawer Style = MiddlePinSize 4 + Size 12 + Size 20 Contact Configuration Elcon,middledrawer,hsng,plug,40way TE Connectivity Elcon 系列 40 路 直 公 电缆安装 PCB 壳体
1648382-1
te connectivity / amp
Contact PIN Solder ST Cable Mount Strip High Current ELCON Drawer Connectors CONN SOCKET #20 PCB ELCON Drawer Socket Contact size 20 Heavy Duty Power Connectors SCKT CONTACT SIZE 20 Contact PIN Solder ST Cable Mount Strip Product Highlights:ContactContact Size = 20SocketTermination Type = PCB (Standard)Not Hot Pluggable ContactSocket,20,PCB(standard),NotHotPluggable Size 20 Socket High Current ELCON Drawer Connector 708-68-01109=CONTACT,SKT,#20
1648325-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip High Current ELCON Drawer Connectors CONN SOCKET #20 CRIMP GOLD Contact, Sckt, Size 20, Crimp, Drawer Heavy Duty Power Connectors SCKT CONTACT SIZE 20 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Size = 20SocketTermination Type = Crimp (Standard)Not Hot Pluggable CONTACT,SOCKET,HIGHCURRENTELCONDRAWER,SIZE20,CRIMP Low Insertion Force 5 A #20 Crimp Contact Socket TE Connectivity ELCON Drawer 系列 母 压接接线端子, 压接, 镀金镀镍触点 702-92-01109=CONTACT,SKT,#20
6648318-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip High Current ELCON Drawer Connectors CONN SOCKET #12 CRIMP REMOVABLE Contact, Socket, Size 12, crimp, Drawer Heavy Duty Power Connectors SCKT CONTACT SIZE 12 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Size = 12SocketTermination Type = Crimp (Standard)Not Hot Pluggable CONTACT,SOCKET,HIGHCURRENTELCONDRAWER,SIZE12,CRIMP TE Connectivity ELCON Drawer 系列 母 压接接线端子, 压接, 镀金触点 CONTACT,SKT,#12
6648434-1
te connectivity / amp

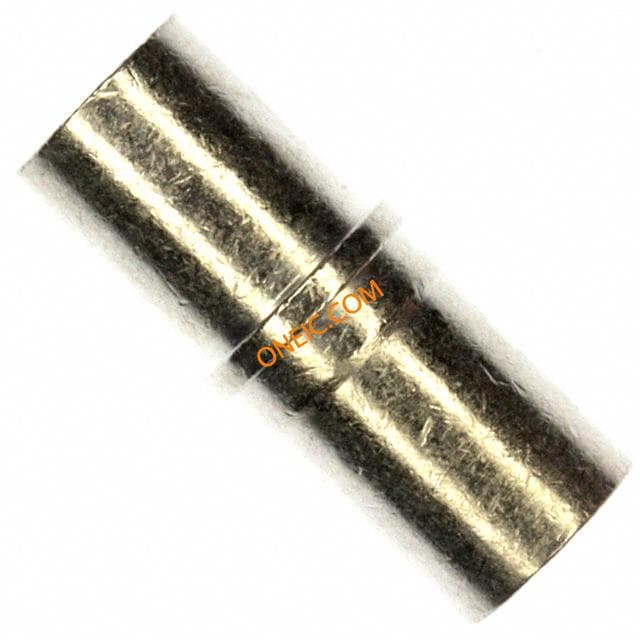

Contact SKT Crimp ST Cable Mount Strip High Current ELCON Drawer Connectors CONN SOCKET 1/4" 4AWG CRIMP Heavy Duty Power Connectors SCKT CONTACT SZ 4 SINGLE CR Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Size = 4SocketTermination Type = Crimp (Standard)Not Hot Pluggable CONTACT,SKT,SIZE1/4,SINGLECROW CONTACT,SKT,SIZE 1/4,SINGLE CR
