点击放大查看

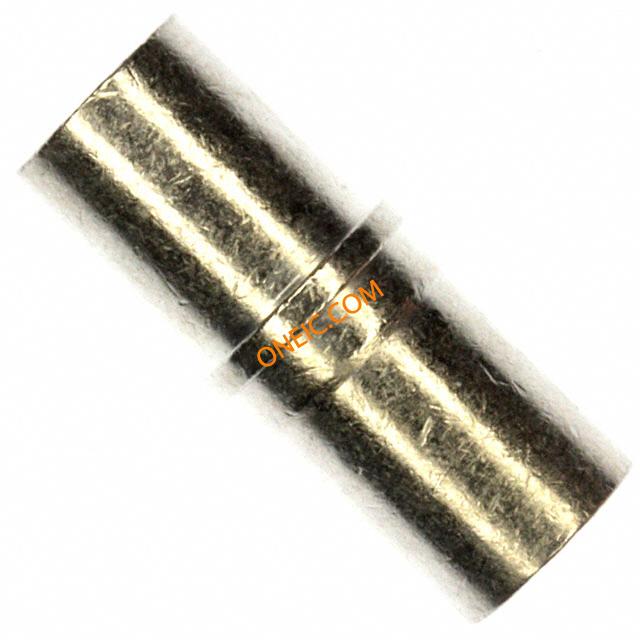

6648434-1
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Strip High Current ELCON Drawer Connectors CONN SOCKET 1/4" 4AWG CRIMP Heavy Duty Power Connectors SCKT CONTACT SZ 4 SINGLE CR Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Size = 4SocketTermination Type = Crimp (Standard)Not Hot Pluggable CONTACT,SKT,SIZE1/4,SINGLECROW CONTACT,SKT,SIZE 1/4,SINGLE CR |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 250 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 输入端 | 200 – 300 | 最大额定电流 | 125A |
机械参数
| 镀层 | 银 | 包装方式 | Bulk |
| 绝缘类型 | Without | 导线线规 | 4 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 触点形状 | 直式 | 安装类型 | 压接 |
| 插针或插孔 | Socket | 释放力 | 不带 |
| 端子尺寸 | 4 | 连接器类型 | Connector Power |
| 接触镀层 | Silver | 壳体镀层 | Nickel |
| 插入件材料 | 铜 | 插入力 | Female |
| 触头材料 | Copper Alloy | 包装数量 | 250 |
| 端接样式 | Crimp | 接触件端接 | Crimp |
| 触点镀层 | 银 | 线规或范围 - AWG | 4 |
| 护套（绝缘）厚度 | 1 µm [ 40 µin ] | ||
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 产品特性 | Standard Not Hot Pluggable | 产品子类型 | Contacts |
| 应用细节 | Power, Signal | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
