点击放大查看

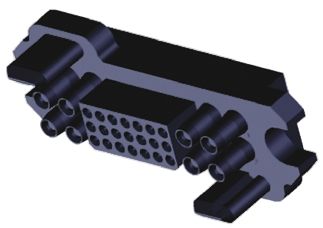

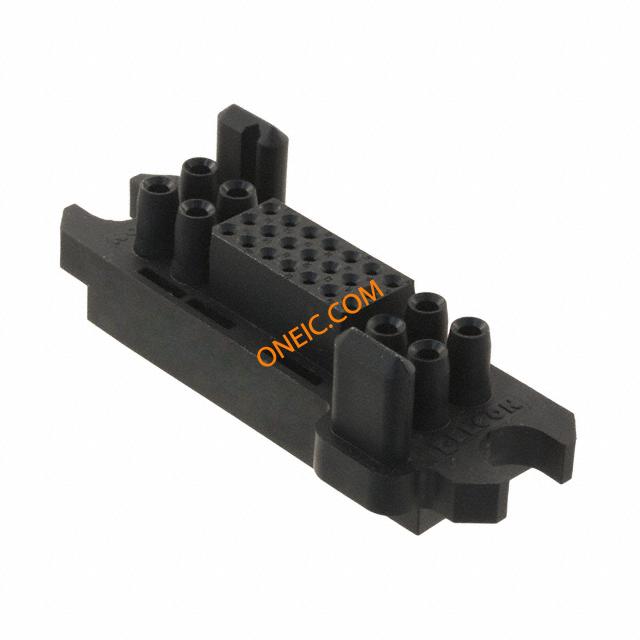

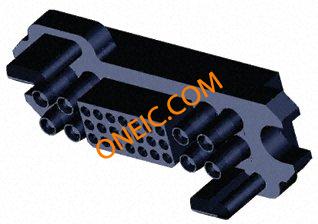

1648206-1
| 制造商 | |
| 描述 | Conn Housing SKT 4/21 POS Crimp ST Cable Mount High Current ELCON Drawer Connectors CONN SOCKET LOWER DRAWR 12/20/12 Elcon,lower drawer,hsng,skt,29way Heavy Duty Power Connectors SCKT HOUSING CONN SIZE 12 20 Conn Housing SKT 4/21 POS Crimp ST Cable Mount Product Highlights:HousingContact Size = 12, 20Drawer Style = LowerSocketSize 12 + Size 20 + Size 12 Contact Configuration CONNECTOR,SOCKET,HIGHCURRENT,DRAWER,LOWER,SIZE12+SIZE20+SIZE12 TE Connectivity Elcon 系列 25针 插座 电源连接器外壳 , 电缆安装 |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 45 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 35A | ||
机械参数
| 颜色 | Black | 深度 | 27.68 mm |
| 包装方式 | Bulk | 方向 | 直 |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Housing for Female Sockets | 安装样式 | Straight |
| 排数 | 3 | 连接器样式 | Drawer, Lower |
| 连接器用途 | Receptacle | 插入力 | Female |
| 壳体材料 | Thermoplastic | 总长度 | 82 mm |
| 主要材料 | Drawer | 尺寸/外形 | 12, 20 |
| 触点数 | 4/21 | 位数 | 29 (21 + 8 Power) |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | SKT | 系列 | Elcon |
| 产品特性 | Guide Pin | 制造商全称 | Elcon |
| 产品子类型 | Receptacle Housings | ||
