点击放大查看

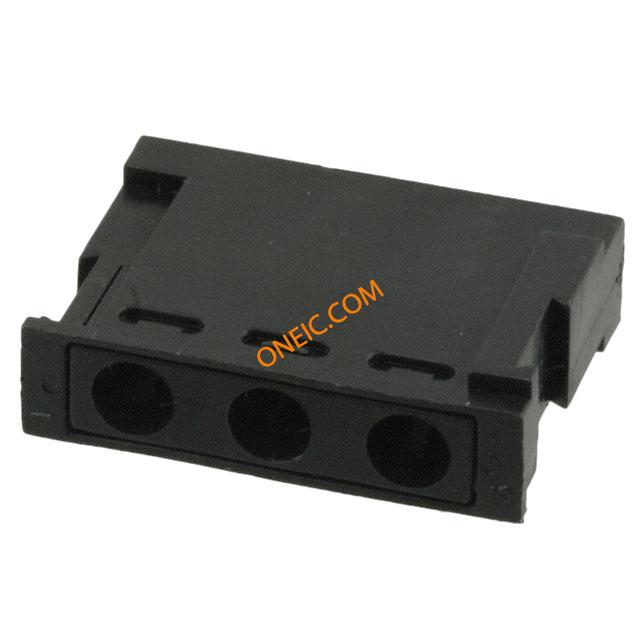

1648466-1
| 制造商 | |
| 描述 | Conn Housing RCP 3 POS 8.83mm Crimp ST High Current (DOMINO) Modular Power Connectors CONN PWR RCPT 3POS CONT SIZE 12 Heavy Duty Power Connectors 765-15-0080A HSG,SKT,MOD A Conn Housing RCP 3 POS 8.83mm Crimp ST Search Keywords:DOMINO Series Connectors Hot Plug High Current Modular Power Connectors Drawer Connector Blind mate |
| 分类 |
商业参数
| 其他名称 | 16484661 | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 触点额定值 @ 电压 | 35A UL/TUV, 20A CSA, 250V | ||
机械参数
| 间距 | 8.83 mm | 包装方式 | Bulk |
| 触点形式 | No | 触点尺寸 | 12 |
| 触头类型 | Power | 安装类型 | Straight |
| 连接器类型 | Housing for Female Sockets | 排数 | 1 |
| 连接器样式 | Drawer | 连接器用途 | Receptacle |
| 触点数 | 3 | 位数 | 3 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 产品子类型 | Housing |
文档与媒体
