点击放大查看

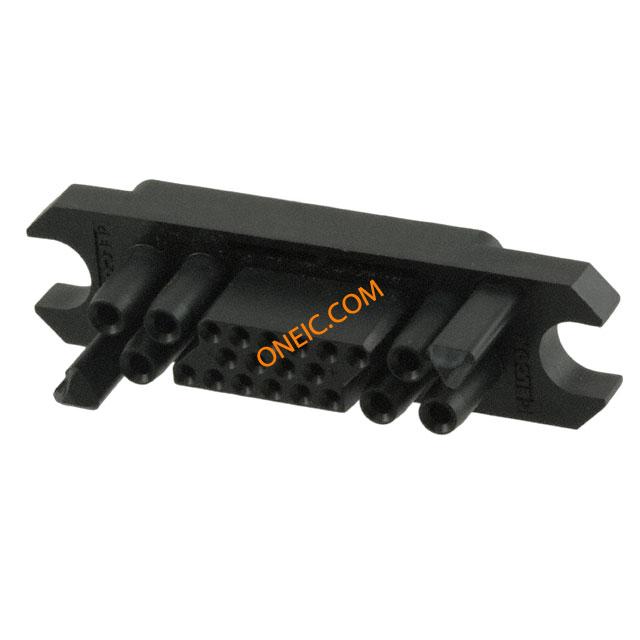

1648115-1
| 制造商 | |
| 描述 | Conn Housing SKT 6/16 POS Crimp ST High Current ELCON Drawer Connectors CONN RCPT SIZE 12+20+12 BLACK Elcon,mini drawer,hsng,receptacle,22way Conn Housing SKT 6/16 POS Crimp ST Product Highlights:HousingContact Size = 12, 20Drawer Style = MiniSocketSize 12 + Size 20 + Size 12 Contact Configuration SACONN,SKT TE Connectivity Elcon 系列 5 行 22 路 直 母 PCB 壳体 |
| 分类 |
商业参数
| 其他名称 | 16481151 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 35/Contact A | 最小供电电压 | 250V |
机械参数
| 颜色 | Black | 深度 | 27.6mm |
| 宽度 | 20.1mm | 高度 | 20.1 mm |
| 长度 | 75.8mm | 包装方式 | Bulk |
| 方向 | 直 | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Housing for Female Sockets |
| 排数 | 2/3 | 连接器样式 | Mini-Drawer |
| 连接器用途 | Receptacle | 壳体材料 | PET |
| 总长度 | 75.8 mm | 触点数 | 6/16 |
| 位数 | 22 (16 + 6 Power) | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | SKT | 系列 | ELCON |
| 产品特性 | Guide Pin | 适用产品/相关产品 | Power Connector |
