点击放大查看

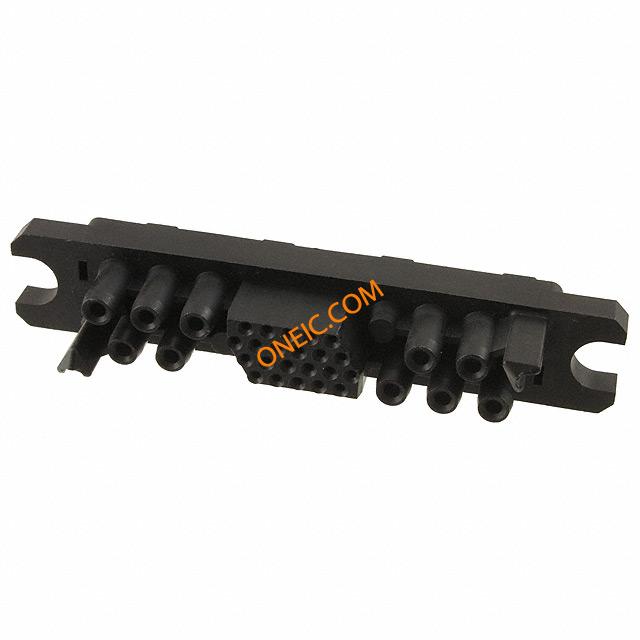

1648212-1
| 制造商 | |
| 描述 | Conn Housing RCP 5/22 POS Crimp ST High Current ELCON Drawer Connectors Heavy Duty Power Connectors 424-0001-01100 RECEPTACLE, 32WAY 424-0001-01100 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 最大额定电流 | 35 A | ||
机械参数
| 颜色 | Black | 重量 | 0.09 |
| 包装方式 | Bulk | 安装类型 | Straight |
| 连接器类型 | :Rectangular | 接触镀层 | :- |
| 排数 | :2 | 连接器样式 | Drawer |
| 连接器用途 | Receptacle | 触头材料 | :- |
| 壳体材料 | Thermoplastic | 第一触头极性 | :- |
| 触点数 | 5/22 | 接触件端接 | :Crimp |
| 位数 | 32 (22 + 10 Power) | 外壳尺寸-插件 | :- |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | :ELCON Drawer |
| 产品特性 | Mating Guide | 产品子类型 | Housings |
