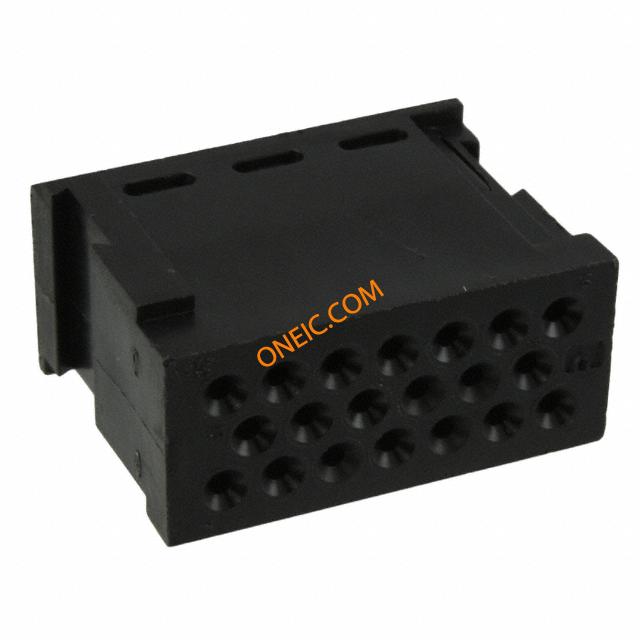

1648468-1
| 制造商 | |
| 描述 | Conn Housing RCP 20 POS Crimp ST Heavy Duty Power Connectors 765-17-0080C HSG,SKT,MOD C High Current (DOMINO) Modular Power Connectors CONN PWR RCPT 20POS CONT SIZE 20 High Current (DOMINO) Modular Power Connectors Product Highlights:HousingContacts Not PreloadedContact Type = SignalNumber of Positions = 20Contact Size = 20Search Keywords:DOMINO Series Connectors Hot Plug High Current Modular Power Connectors Drawer Connector Blind mate |
| 分类 |
商业参数
| 其他名称 | 16484681 | 标准包装规格 | 50 |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 触点额定值 @ 电压 | 5A UL/TUV, 4A CSA, 125V | ||
机械参数
| 包装方式 | Bulk | 触点形式 | No |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Housing for Female Sockets |
| 排数 | 3 | 连接器样式 | Drawer |
| 连接器用途 | Receptacle | 位数 | 20 |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Socket |
| 产品子类型 | Housing | ||
