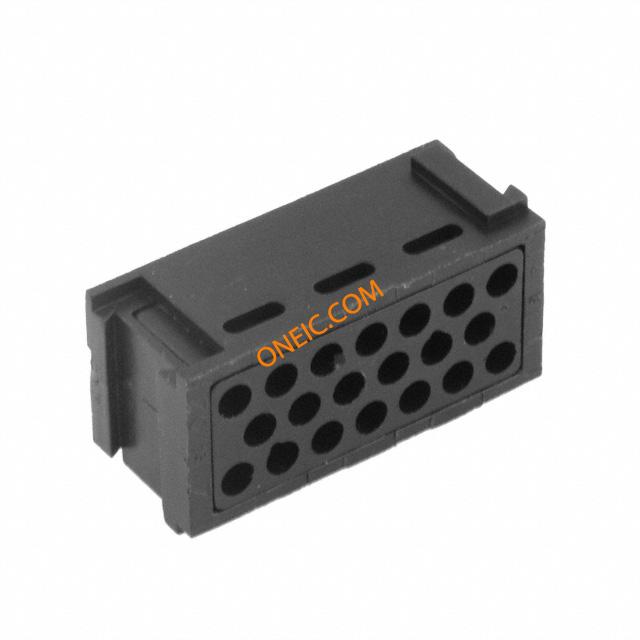

点击放大查看
1648463-1
| 制造商 | |
| 描述 | Conn Housing PL 20 POS ST High Current (DOMINO) Modular Power Connectors CONN PWR PLUG 20POS CONT SIZE 20 Heavy Duty Power Connectors 765-12-0080C TA HSG PIN MOD C Conn Housing PL 20 POS ST Product Highlights:HousingContacts Not PreloadedContact Type = SignalNumber of Positions = 20Contact Size = 20Search Keywords:DOMINO Series Connectors Hot Plug High Current Modular Power Connectors Drawer Connector Blind mate |
| 分类 |
商业参数
| 其他名称 | 16484631 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 触点额定值 @ 电压 | 5A UL/TUV, 4A CSA, 125V | ||
机械参数
| 包装方式 | Bulk | 触点形式 | No |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 安装类型 | Straight | 连接器类型 | Housing for Male Pins |
| 排数 | 1 | 连接器样式 | Drawer |
| 连接器用途 | Plug | 触点数 | 20 |
| 位数 | 20 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品子类型 | Housing |
