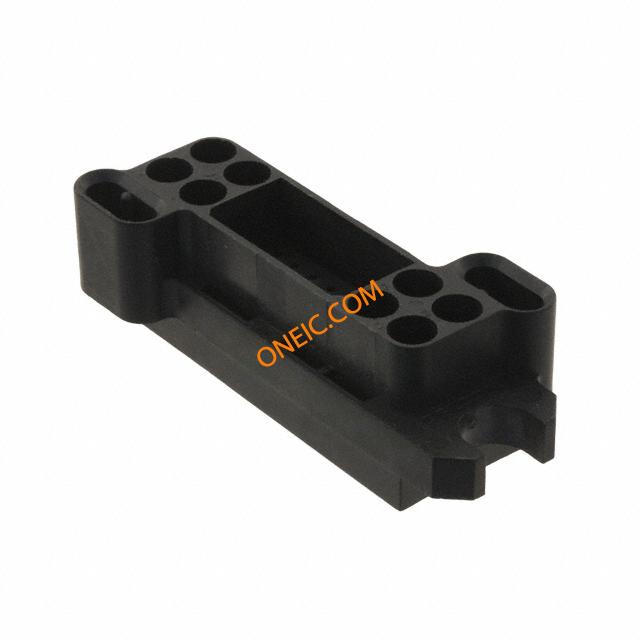

1648204-1
| 制造商 | |
| 描述 | Conn Housing PL 4/21 POS Crimp ST Cable Mount High Power Drawer - Elcon CONN PIN LOWER DRAWER 16/20/16 Heavy Duty Power Connectors PIN HOUSING CONN SIZE 16 20 1648204-1 High Current ELCON Drawer Connectors High Current ELCON Drawer Connectors Product Highlights:HousingHousing Type = PlugContact Size = 16, 20Drawer Style = LowerSize 16 + Size 20 + Size 16 Contact Configuration |
| 分类 |
商业参数
| 标准包装规格 | 45 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 45 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 最大额定电流 | 35 | ||
机械参数
| 颜色 | Black | 包装方式 | Bulk |
| 触点尺寸 | 16 / 20 | 触头类型 | Size 16 + Size 20 + Size 16 |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Housing for Male Pins | 排数 | 3 |
| 连接器样式 | Plug | 连接器用途 | Plug |
| 壳体材料 | Thermoplastic - GF | 触点数 | 4/21 |
| 位数 | 29 (21 + 8 Power) | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品特性 | Mating Guide |
| 预加载 | No | 制造商全称 | Elcon |
| 产品子类型 | Connector | 抽屉总数 | Lower |
