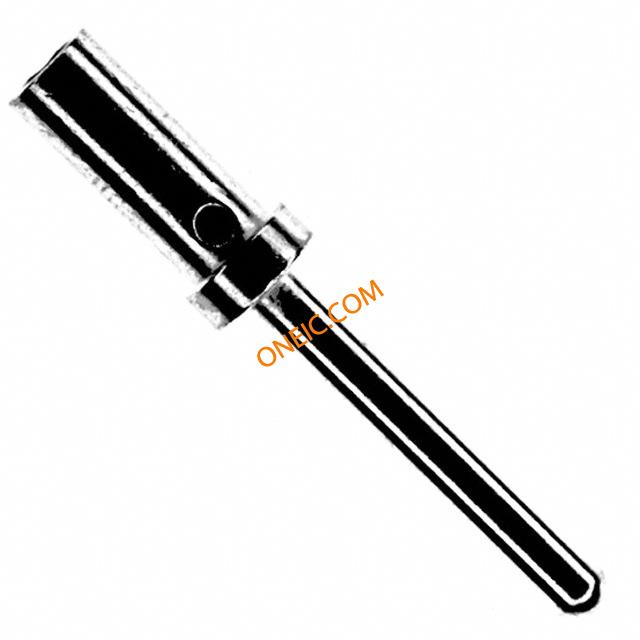

点击放大查看
1766194-1
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount High Current ELCON Drawer Connectors CONN PIN #16 CRIMP SILVER Elcon,top drawer,contact,pin,size 16,S Heavy Duty Power Connectors CONTACT PIN #16 Contact PIN Crimp ST Cable Mount Product Highlights:ContactContact Size = 16PinTermination Type = Crimp (Removable)Not Hot Pluggable CONTACT, CRIMP, PIN, 16AWG, CRIMP CONTACT,PIN,#16 TE Connectivity ELCON Drawer 系列 公 压接接线端子, 压接, 镀银触点 |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 00000000 |
电气参数
| 最大额定电流 | 15A | ||
机械参数
| 间距 | Not Required mm | 重量 | 0 |
| 包装方式 | Bulk | 导线线规 | 16 AWG |
| 端接方式 | Crimp | 触点尺寸 | :16 |
| 触头类型 | Signal | 安装类型 | Straight |
| 插针或插孔 | Pin | 连接器类型 | Connector Power |
| 接触镀层 | Silver | 安装样式 | Cable |
| 触头材料 | Copper | 壳体材料 | Not Required |
| 端接样式 | Crimp | 第一触头极性 | :- |
| 触点数 | 1 POS | 接触件端接 | Crimp |
| 接触镀层厚度 | 200µin (5.08µm) | ||
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | :- | 产品子类型 | Contacts |
| 端口数 | 1 Port | ||
