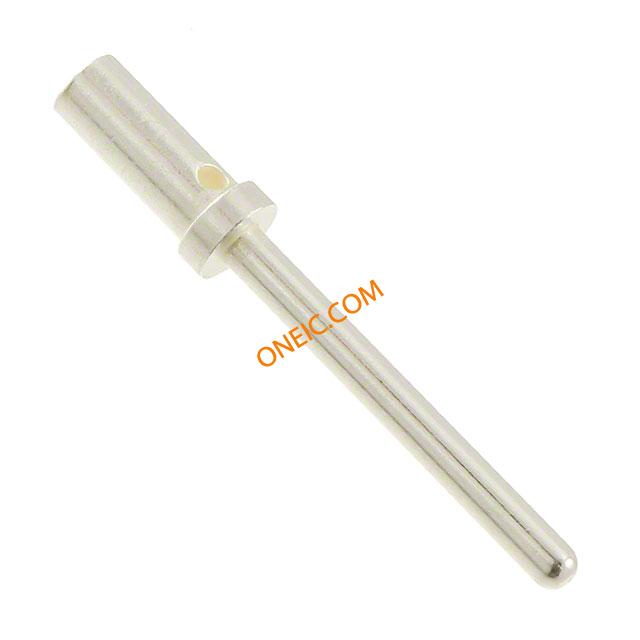

1766198-1
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece High Current ELCON Drawer Connectors CONN PIN SIZE #16 CRIMP Heavy Duty Power Connectors CONTACT PIN #16 1766198-1 High Current ELCON Drawer Connectors Product Highlights:ContactContact Size = 12PinTermination Type = PCB (Standard)Not Hot Pluggable CONTACT,PIN,#16 |
| 分类 |
商业参数
| 标准包装规格 | 500 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 35A | ||
机械参数
| 深度 | 2.16 | 高度 | 2.16 |
| 镀层 | 银 | 包装方式 | Loose Piece |
| 绝缘类型 | Without | 导线线规 | 16 AWG |
| 端接方式 | Crimp | 触点尺寸 | 12 |
| 触头类型 | Power | 触点形状 | 直式 |
| 安装类型 | Cable Mount | 插针或插孔 | Pin |
| 释放力 | 不带 | 端子尺寸 | 12 |
| 连接器类型 | Connector Power | 接触镀层 | Silver |
| 壳体镀层 | Nickel | 插入件材料 | 铜 |
| 触头材料 | Copper | 总长度 | 12.45 |
| 包装数量 | 500 | 端接样式 | 插针 |
| 接触件端接 | Crimp | 触点镀层 | 银 |
| 接触件表面处理 - 配合 | 银 | 法兰上方插针尺寸 | 1.57 mm [ .062 in ] |
| 接触镀层厚度 | 200µin (5.08µm) | 护套（绝缘）厚度 | 1.27 µm [ 50 µin ] |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 产品特性 | Standard Not Hot Pluggable | 产品子类型 | 端子 |
| 应用细节 | Power | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
