点击放大查看

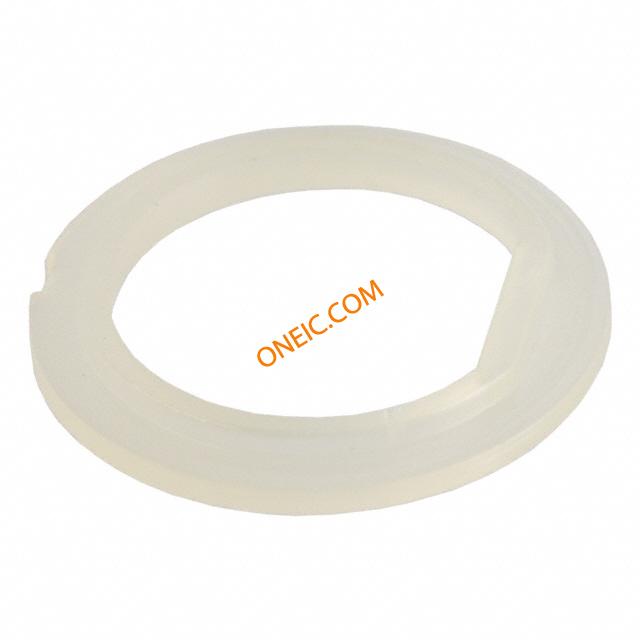

330620
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories BNC Insulating Bushing Nylon BNC RF Connectors CONN BUSHING INSULATE BNC BLKHD RF Connector Accessories INSULATION BUSHING Connector Accessories BNC Insulating Bushing Nylon Product Highlights:Insulating BushingConnector Type = BNCNot StackedInsulating Bushing Outside Diameter = 17.45 mmSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 INSULATIONBUSHING,BNC,17.45MMOUTSIDEDIAMETER TE Connectivity BNC系列 天然色 尼龙 绝缘衬套, 适用于射频同轴连接器 INSUL BUSHING BNC BLKHD PHEN |
| 分类 |
商业参数
| 产品 | Hardware | 产品类别 | RF Connector Accessories |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
机械参数
| 颜色 | 天然色 | 高度 | 1.7 mm |
| 直径 | 17.45 mm | 材料（通用） | 尼龙 |
| 包装方式 | 纸箱 | 基体材料 | Polyamide (PA), Nylon |
| 安装类型 | Straight | 连接器类型 | BNC |
| 壳体镀层 | 银 | 连接器样式 | BNC |
| 主要材料 | Polyamide (PA), Nylon | 外径 | 17.45 [0.687] |
| 绝缘材料 - 类型 | Nylon | 兼容外壳尺寸（如TM-700等） | BNC 连接器 |
产品信息
| 备注 | (2 Required) For Mil Type Dual Crimp and Field Serviceable Bulkhead Jacks. | 类型 | Insulating Bushing |
| 系列 | Coaxicon, AMP | 产品子类型 | Insulating Bushing |
| 附件类型 | Bushing | 射频系列/标准 | 330620 |
| 适用产品/相关产品 | BNC and TNC Bulkhead Jacks | ||
环境参数
| 工作温度 | -55C to 85C | ||
