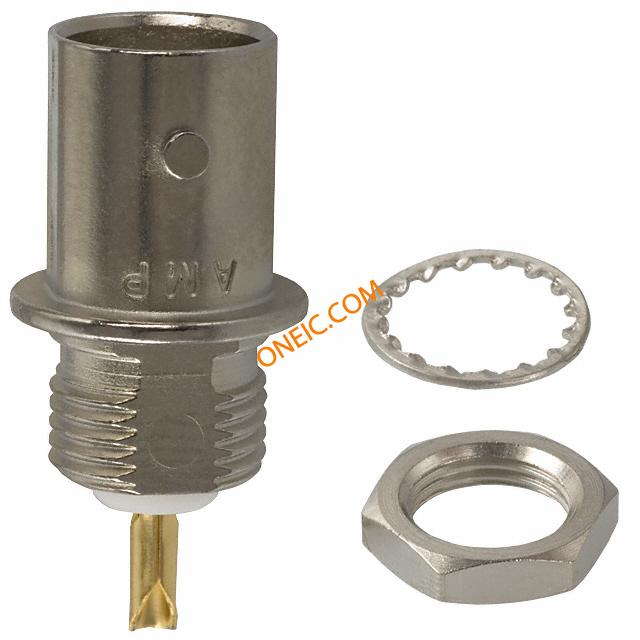

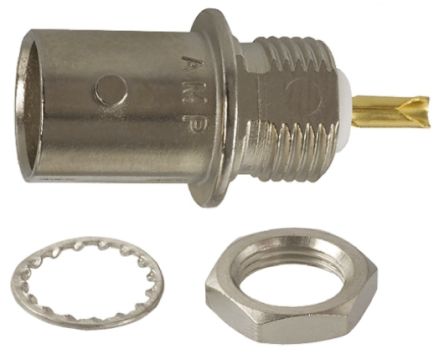

5227754-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Gold BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors BULKHEAD SOLDER JACK Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Gold Product Highlights:Connector - RFJackTerminate To WireCoaxial Cable Termination Type = SolderBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF/COAXIAL, BNC JACK, STR, 50 OHM, SOLDER TE Connectivity 直 50Ω 面板安装 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC SOLDER RECEPT JACK |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 隔离电源 | No | 额定电压 | 500 V |
| 最大频率 | 4GHz | 连接器阻抗 | Without |
| 绝缘电阻 | 5000 MOhms | ||
机械参数
| 密封型 | No | 重量 | 0.005 |
| 直径 | 13.09 mm | 包装方式 | Bulk |
| 电缆类型 | :- | 绝缘类型 | 227223-1 |
| 本体表面处理 | Nickel | 方向 | Straight |
| 端接方式 | Solder Cup | 安装类型 | Panel Mount |
| 线径 | 1.50 [0.059] | 连接器类型 | BNC |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 安装样式 | Panel | 壳体镀层 | Nickel |
| 连接器样式 | BNC | 面板厚度 | 1.17 â 3.18 [0.046 â 0.125] |
| 触头材料 | Phosphor Bronze | 面板安装类型 | Bulkhead |
| 连接器 - 电缆 | Solder | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder Cup | 介电材料 | VALOX |
| 绝缘材料 - 类型 | Valox | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | 供应商器件封装 | Straight |
| 表面贴装焊盘尺寸 | No | ||
产品信息
| 备注 | Includes lockwasher and jam nut | 类型 | BNC |
| 等级 | Commercial | 连接器性别 | RCP |
| 产品特性 | Extended Insulation | 硬件配件 | No |
| 极性 | No | 制造商全称 | AMP |
| 产品子类型 | Connector | 连接类型 | Wire |
| 端口数 | 1 | 射频系列/标准 | 5227754 |
环境参数
| 工作温度 | - 65 C to + 165 C | ||
