5415417-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn BNC RCP 75Ohm RA Thru-Hole Gold BNC RF Connectors CONN BNC JACK R/A 75 OHM PCB RF Connectors / Coaxial Connectors PCB JACK 75 OHM Conn BNC RCP 75Ohm RA Thru-Hole Gold Product Highlights:ConnectorConnector Type = BNCJackTerminate To Printed Circuit BoardPCB Mount Angle = Right AngleSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 JACK,PCB,75 OHM,NC |
| 分类 |
商业参数
| 产品 | PCB Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 35 |
合规参数
| RoHS | Lead free / RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 阻抗 | 75 Ohm | 隔离电源 | No |
| 额定电压 | 500 V | 最大频率 | 2 GHz |
| 连接器阻抗 | Without | 阻抗（最大）（Zzt） | 75 |
| 绝缘电阻 | 5000 MOhms | ||
机械参数
| 深度 | 34.93 mm | 高度 | 12.7 mm |
| 密封型 | No | 包装方式 | Tray |
| 本体表面处理 | Nickel | 方向 | Right Angle |
| 基体材料 | Zinc | 外壳颜色 | Silver |
| 安装类型 | Through Hole | 连接器类型 | BNC |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 安装样式 | Compliant | 壳体镀层 | Nickel |
| 连接器样式 | BNC | 高度（英寸） | 12.70 [0.500] |
| 触头材料 | Phosphor Bronze | 总长度 | 14.76 mm |
| 安装特性 | 压紧柱体 | 面板安装类型 | Lockwasher and Nut |
| 主要材料 | 锌 | 端接样式 | Solder |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polymethylpentene | 绝缘材料 - 类型 | 不带 |
| 位数 | 1 | 中心触点表面处理 | 金 |
| 中心触点镀层工艺 | Gold (30) | 柱体长度（配合） | 3.48 [0.137] |
| 中心触点材料 | Phosphor Bronze | 供应商器件封装 | Right Angle |
| 表面贴装焊盘尺寸 | No | 接触镀层厚度 | 30 |
| 第一连接器安装类型 | Panel | 外管直径（最大） | 14.529 mm [ .572 in ] |
| 执行器距PCB垂直高度 | 12.7 mm [ .5 in ] | ||
产品信息
| 备注 | If an Insulating Bushing is required, see Part Number 330620. | 类型 | BNC |
| 等级 | Commercial | 连接器性别 | RCP |
| 产品特性 | Board Lock | 硬件配件 | No |
| 极性 | No | 可密封 | 否 |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 连接类型 | PCB | 端口数 | 1 |
| 射频系列/标准 | 5415417 | ||
环境参数
| 工作温度 | - 55 C to + 85 C | ||
文档与媒体
相关型号
330620
TE Connectivity AMP Connectors
Connector Accessories BNC Insulating Bushing Nylon BNC RF Connectors CONN BUSHING INSULATE BNC BLKHD RF Connector Accessories INSULATION BUSHING Connector Accessories BNC Insulating Bushing Nylon Product Highlights:Insulating BushingConnector Type = BNCNot StackedInsulating Bushing Outside Diameter = 17.45 mmSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 INSULATIONBUSHING,BNC,17.45MMOUTSIDEDIAMETER TE Connectivity BNC系列 天然色 尼龙 绝缘衬套, 适用于射频同轴连接器 INSUL BUSHING BNC BLKHD PHEN
9-227260-0
te connectivity / amp
Lock Washer Terminal 14.55mm Tin Terminals LOCKWASHER TERM LOCKWASHER TERM CONN LOCKWASHER RECEPT BNC LOCKWASHER,TERMINAL,LEADFREE TE Connectivity 227260系列 锁紧垫圈
1-1337524-0
te connectivity / amp

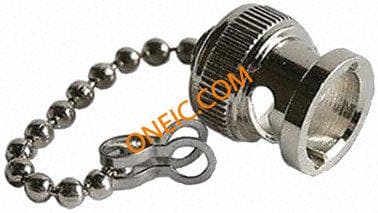

Connector Accessories Plug BNC Cap 1Port Brass Nickel Finish Individual BNC RF Connectors BNC Dust Cap and Chain Ni RF Connector Accessories CAP PLUG STRAIGHT Connector Accessories Plug BNC Cap 1Port Brass Nickel Finish Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 BNCDustCapandChainNi Protection cover; chain; Application: BNC sockets TE Connectivity RF 连接器防尘盖 BNC Plg DCap & Chn Nickel Pltd
