点击放大查看

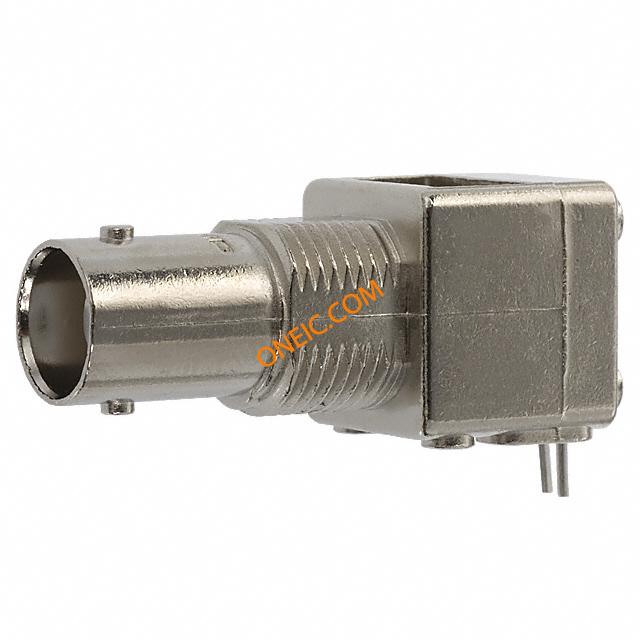

5227433-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Tin BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB RF Connectors / Coaxial Connectors RA JACK BHD Conn BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Tin Product Highlights:ConnectorConnector Type = BNCJackTerminate To Printed Circuit BoardPCB Mount Angle = Right AngleSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 BNC PCB JACK BLKHD ASSY |
| 分类 |
商业参数
| 产品 | PCB Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 35 |
合规参数
| RoHS | Lead free / RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 隔离电源 | No | 额定电压 | 500 V |
| 最大频率 | 4GHz | 连接器阻抗 | Without |
| 阻抗（最大）（Zzt） | 50 | 绝缘电阻 | 5000 MOhms |
机械参数
| 深度 | 34.93 mm | 高度 | 15.88 mm |
| 密封型 | No | 包装方式 | Bulk |
| 本体表面处理 | Nickel | 方向 | Right Angle |
| 端接方式 | Solder | 基体材料 | Diecast Zinc |
| 安装类型 | Through Hole | 连接器类型 | BNC |
| 接触镀层 | Tin | 紧固类型 | Bayonet Lock |
| 安装样式 | Through Hole | 壳体镀层 | Nickel |
| 连接器样式 | BNC | 高度（英寸） | 15.88 [0.625] |
| 触头材料 | Phosphor Bronze | 总长度 | 14.76 mm |
| 面板安装类型 | Lockwasher and Nut | 主要材料 | 锌 |
| 端接样式 | Solder | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polymethylpentene |
| 绝缘材料 - 类型 | Polymethylpentene | 位数 | 1 |
| 中心触点表面处理 | 锡 | 中心触点镀层工艺 | Tin |
| 中心触点材料 | Phosphor Bronze | 供应商器件封装 | Right Angle |
| 表面贴装焊盘尺寸 | No | 接触镀层厚度 | 5080 |
| 第一连接器安装类型 | Panel | 外管直径（最大） | 14.529 mm [ .572 in ] |
| 执行器距PCB垂直高度 | 15.88 mm [ .625 in ] | ||
产品信息
| 备注 | If an Insulating Bushing is required, see Part Number 330620. | 类型 | BNC |
| 等级 | Commercial | 连接器性别 | RCP |
| 硬件配件 | No | 极性 | No |
| 可密封 | 否 | 制造商全称 | AMP |
| 产品子类型 | Connector | 连接类型 | PCB |
| 端口数 | 1 | 射频系列/标准 | 5227433 |
环境参数
| 工作温度 | - 55 C to + 85 C | ||
