414758-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | RF Connectors BULKHEAD JACK CONN BNC JACK STR 50 OHM CRIMP |
| 分类 |
商业参数
| 标准包装数量 | 75 | ||
电气参数
| 阻抗 | 50 Ohm | 最大频率 | 4GHz |
机械参数
| 包装方式 | Bulk | 本体表面处理 | Nickel |
| 电缆组 | RG-58, 58A, 58B, 58C | 安装类型 | Panel Mount, Bulkhead - Front Side Nut |
| 连接器类型 | Jack, Female Socket | 紧固类型 | Bayonet Lock |
| 连接器样式 | BNC | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polymethylpentene (PMP) |
| 中心触点镀层工艺 | Gold | ||
产品信息
| 产品特性 | Decoupling Capacitance | ||
相关型号
330620
TE Connectivity AMP Connectors
Connector Accessories BNC Insulating Bushing Nylon BNC RF Connectors CONN BUSHING INSULATE BNC BLKHD RF Connector Accessories INSULATION BUSHING Connector Accessories BNC Insulating Bushing Nylon Product Highlights:Insulating BushingConnector Type = BNCNot StackedInsulating Bushing Outside Diameter = 17.45 mmSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 INSULATIONBUSHING,BNC,17.45MMOUTSIDEDIAMETER TE Connectivity BNC系列 天然色 尼龙 绝缘衬套, 适用于射频同轴连接器 INSUL BUSHING BNC BLKHD PHEN

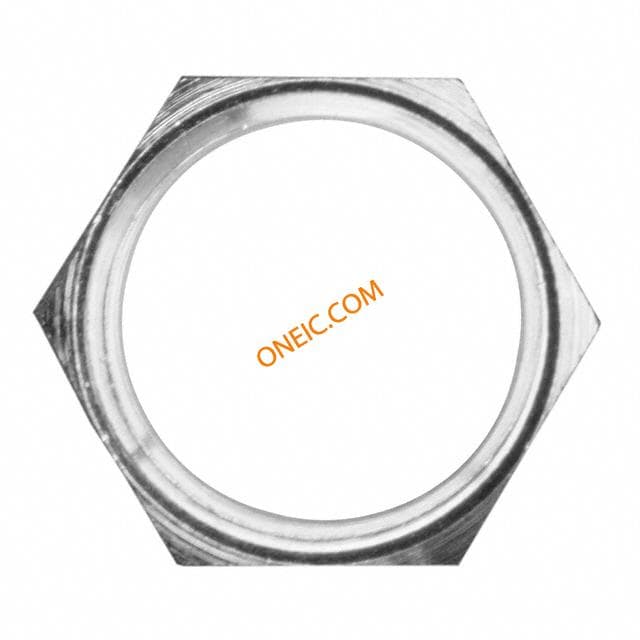

1-1634816-0
te connectivity / amp
Connector Accessories Jam Nut Brass BNC RF Connectors CONN BNC/TNC NUT HEXAGONAL BNC/TNC hexagonal nut Screws & Fasteners Hexagonal Nut Connector Accessories Jam Nut Brass Product Highlights:Jam NutConnector Type = ZDC/BNCCommercial GradeBrass Body MaterialNickel Body PlatingSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 NUT, BNC / TNC BNC/TNCHEXAGONALNUT BNC / TNC Hexagonal Nut Hex Nut BNC, 1-1634816-0, TE Connectivity TE Connectivity Greenpar系列 螺母, 使用于BNC 和 TNC 连接器

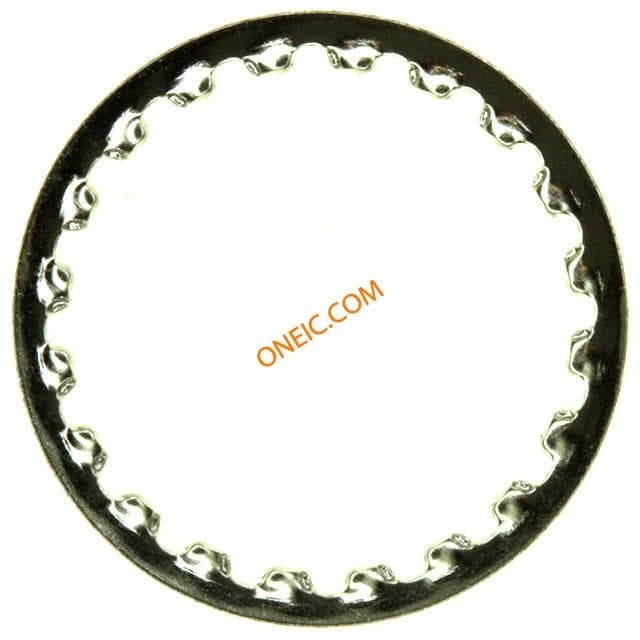

1-1634817-0
