5227161-1

点击放大查看

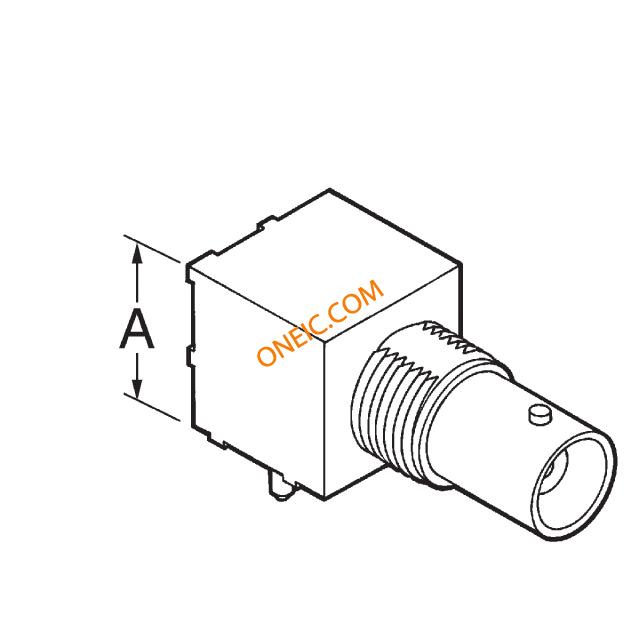

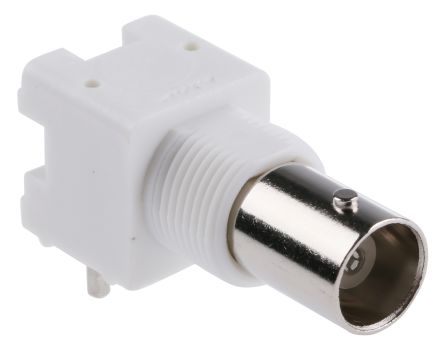

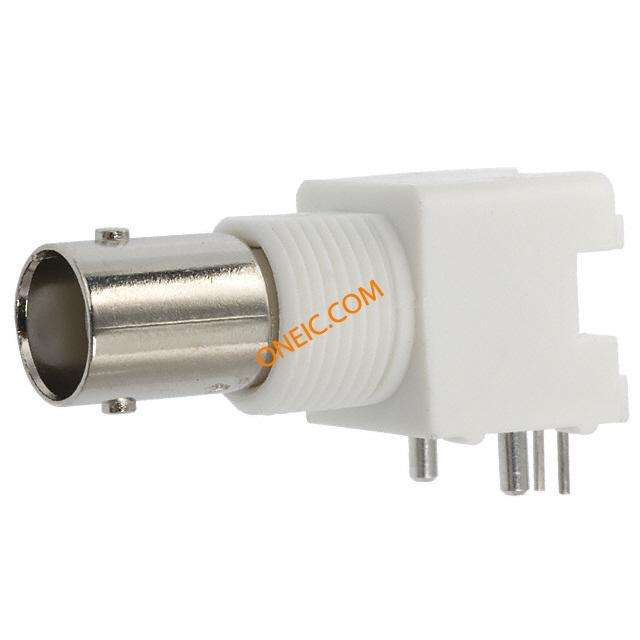

5227161-1

制造商
TE Connectivity Ltd.
描述Conn BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Tin BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC,90°,jack,solder,PCB mount,Au,50ohm RF Connectors / Coaxial Connectors R.A. JACK 50 OHM Conn BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Tin Product Highlights:ConnectorConnector Type = BNCJackTerminate To Printed Circuit BoardPCB Mount Angle = Right AngleSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 JACK BNC, RIGHT ANGLE, PCB Jack,PCB;50Ohms;BNC;Tin-Lead;Panel;Jack;Valox;PhosphorBronze TE Connectivity 直角 50Ω 通孔 BNC 连接器, 插口, 焊接 端接, 镀镍本体 RTANG JK W/MTG PINS, BNC PCB
分类
连接器解决方案同轴连接器(RF)射频同轴连接器
对参数有疑问？问 AI 助手

商业参数

产品PCB Connectors产品类别RF Connectors / Coaxial Connectors
标准包装数量Rail / Tube工厂包装数量35

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
抗辐射加固No无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant认证机构标志No

电气参数

频率0 to 4 GHz阻抗50 Ohm
隔离电源No额定电压500 V
最大频率4GHz连接器阻抗Without
绝缘电阻5000 MOhms

机械参数

尺寸Standard颜色White
深度14.76 mm宽度:14.76mm
高度15.88 mm长度:13.18mm
密封型No重量0.001
材料（通用）:VALOX包装方式Tube
电缆类型:-本体表面处理Nickel
方向Right Angle端接方式Solder
基体材料VALOX安装类型Through Hole
行程角度RightAngle连接器类型BNC
接触镀层Tin紧固类型Bayonet Lock
外壳涂层Nickel安装样式Standard
壳体镀层Nickel连接器样式BNC
高度（英寸）15.88 [0.625]触头材料Phosphor Bronze
壳体材料Valox总长度34.93 mm
面板安装类型Lockwasher and Nut主要材料BNC
端接样式Solder配接方向Bayonet
屏蔽层端接方式Solder接触件端接Solder
介电材料Polymethylpentene绝缘材料 - 类型Polymethylpentene
中心触点镀层工艺Tin柱体长度（配合）3.48 [0.137]
中心触点材料Phosphor Bronze供应商器件封装Right Angle
表面贴装焊盘尺寸No第一连接器安装类型:PCB

产品信息

备注If an Insulating Bushing is required, see Part Number 330620.类型BNC
等级Commercial连接器性别RCP
系列:-产品特性Board Guide
硬件配件No极性No
制造商全称AMP产品子类型Connector
连接类型PCB端口数1
射频系列/标准5227161应用细节Commercial

环境参数

工作温度- 55 C to + 85 C
