点击放大查看
87107-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN SOCKET NO STRIP GOLD CRIMP Headers & Wire Housings MOD IV NO-STRIP PLTD 30 SEL .100 AMPMODU Headers, Housings & Contacts Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.02 - 1.40 mmWire Range = None mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MOD IV NO-STRIP PLTD 30 SEL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 标准包装规格 | 10,000 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准编号 | CSA LR7189 |
电气参数
| 额定电压 | 250 VAC | 供电电压 | 250 |
| 接触电阻 | 12 mΩ | 输入电阻 | 5000 |
| 钳位电压 | 750 | 连接器阻抗 | 压接 |
| 最大额定电流 | 3 A | ||
机械参数
| 包装方式 | Tape & Reel (TR) | 电缆类型 | 分离式导线 |
| 端接方式 | Crimp | 触头类型 | Signal |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold | 压力（PSI） | 标准 |
| 插入件材料 | 铍铜 | 触头材料 | Beryllium Copper |
| 包装数量 | 10000 | 绝缘高度 | 否 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | Crimp, IDC | 绝缘直径 | 1.02 – 1.4 mm [ .04 – .055 in ] |
| 镀层厚度（通用） | 镀金 | 触头长度-柱 | 信号（数据）/电源 |
| 接触件表面处理 - 配合 | 金 | 接触镀层厚度 | 30µin (0.76µm) |
| 触点镀层厚度 - 柱（配合端） | 30 | ||
产品信息
| 备注 | (*) For use with Model "K" machines. Call the Technical Assistance Center (1-800-522-6752) for part numbers of applicators for use with Model "G" machines, as well as other bench machines and fully automatic AMPOMATOR lead making machines. | 连接器性别 | SKT |
| 系列 | AMPMODU MOD IV | 产品子类型 | Contacts |
环境参数
| 工作温度 | - 65 C to + 105 C | ||
相关型号
1-87456-6
te connectivity / amp
Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 20POS .100 DUAL Housing 20 way receptacle 2.54mm AmpModu Headers & Wire Housings 20P HOUSING Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 20Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM Housing,Connector;ModIV;Dual;20;250VAC;3A;750VYes Crimp housing Pitch2.54 mm Poles 20 Contact DesignStamped Double row / straight / without polarization AMPMODU MOD IV, 1-87456-6, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 20 路 直 母 电缆安装 PCB 壳体 20 MODIV HSG DR MRKD .100CL
2-87631-7
te connectivity / amp
Conn Housing RCP 32 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 32POS .100 POL DUAL Conn Housing RCP 32 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 32Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 32 MODIV HSG COMP DR .100 POL
87922-5
te connectivity / amp
Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 18POS .100 POL W/STR Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 18Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 18 MODIV HSG W/STR RLF DR MRKD
1-102387-5
te connectivity / amp
Conn Housing RCP 22 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT HSNG 22POS DUAL .100
2-87499-8
te connectivity / amp
Conn Housing RCP 15 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 15POS .100 SINGLE Headers & Wire Housings 15 POS HSG SR MRKD .1CL Conn Housing RCP 15 POS 2.54mm Crimp ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 15 MODIV HSG COMP SR .100CL
87499-9
te connectivity / amp
Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 5POS .100 SINGLE AmpModu IV receptacle Housing 5 way Headers & Wire Housings NON-PLRZD HSG 5 SNGL .505 width Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 5Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing,Connector;Crimp-Snap;Single;5;250VAC;3A;750V TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 5 路 直 母 电缆安装 PCB 连接器外壳 05 MODIV HSG SR MRKD .100CL
102241-1
te connectivity / amp
Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 3POS .100 POLAR 2.54mm,housing,3W,Mod IV,SR,snap in Headers & Wire Housings POLARIZED HSG 3 SNGL detent latching Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 3Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 1 ROW, 3WAY Housing,Connector;ModIV;Single;3;250VAC;3A;750VYes Plug; wire-board; female; PIN:3; w/o terminals; 2.54mm; for cable Crimp housing Pitch2.54 mm Poles 3 Single row / straight / with polarization / with detent latching AMPMODU MOD IV, 102241-1, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 1 行 2.54mm 节距 3 路 直 母 电缆安装 PCB 壳体 03 MODIV HSG COMP SR .100 POL
1-102387-2
te connectivity / amp
Conn Housing RCP 64 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 64POS .100 POL DUAL Headers & Wire Housings 64P MODIV HOUSING Conn Housing RCP 64 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 64Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR HOUSING, RECEPTACLE 64POS, 2.54MM RECEPTACLE,AMPMODU,MODIV,64POSITION,.100IN,DUALROW,LATCHED TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 64 路 直 母 电缆安装 PCB 连接器外壳 64 MODIV HSG COMP DR .100 POL
2-87977-9
te connectivity / amp
Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 8POS .100 POL DUAL Headers & Wire Housings 08 MODIV HSG COMP DR Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 8Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 08 MODIV HSG COMP DR .100 POL
1-87733-7
te connectivity / amp
Conn Housing RCP 60 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 60POS .100 POL W/STR .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 60Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 60 MODIV HSG W/STR RLF DR MRKD
2-87499-3
te connectivity / amp
Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 13POS .100 SINGLE Headers & Wire Housings HSG 1X13C F/H Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 13Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 13POS, 2.54MM 13 MODIV HSG SR MRKD .100CL
3-87977-3
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 POL DUAL Headers & Wire Housings HSG 2X08C F/H POL Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 16POS, 2.54MM 16 MODIV HSG COMP DR .100 POL
1-102241-6
te connectivity / amp
Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 18POS .100 POLAR Headers & Wire Housings 18 HSG SR COMP .100 POL 18 MODIV HSG COMP SR .100 POL 18 MODIV HSG COMP SR .100 POL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
4-87977-0
te connectivity / amp
Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING RCPT CRIMP 30POS Headers & Wire Housings 30 MODIV HSG COMP DR .100 POL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 30Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 30 MODIV HSG COMP DR .100 POL
1-87456-4
te connectivity / amp
Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 18POS .100 DUAL Headers & Wire Housings 18P DUAL ROW HSG. Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 18Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 18POS, 2.54MM CONNECTOR,HOUSING,RECEPTACLE,MODIV,18POSITION,DUALROW,MARKED 18 MODIV HSG DR MRKD .100CL
1-87631-7
te connectivity / amp
Conn Housing RCP 22 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 22POS .100 POL DUAL Headers & Wire Housings 22 MODIV HSG COMP DR Conn Housing RCP 22 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 22Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 22 MODIV HSG COMP DR .100 POL
3-87456-0
te connectivity / amp
Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 34POS .100 DUAL Housing,Connector,Crimp-Snap,Dual Headers & Wire Housings 34P MOD IV HOUSING Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 34Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 34POS, 2.54MM Housing,Connector;Crimp-Snap;Dual;34;250VAC;3A;750V 34 MODIV HSG DR MRKD .100CL
1-87631-2
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 POL DUAL 2.54mm,housing,16W,Mod IV,DR,snap in Headers & Wire Housings 16P 2 ROW HOUSING Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 2 ROW, 2X8WAY Housing,Connector;Crimp-Snap;Dual;16;250VAC;3A;750V Crimp housing Pitch2.54 mm Poles 16 Contact DesignStamped Double row / straight / with polarization AMPMODU MOD IV, 1-87631-2, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 16 路 直 母 电缆安装 PCB 壳体 16 MODIV HSG DR MRKD .100 POL
3-87977-7
te connectivity / amp
Conn Housing RCP 24 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 24POS .100 POL DUAL Headers & Wire Housings 24 HSG COMP DR .1POL 24 MODIV HSG COMP DR .100 POL 24 MODIV HSG COMP DR .100 POL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

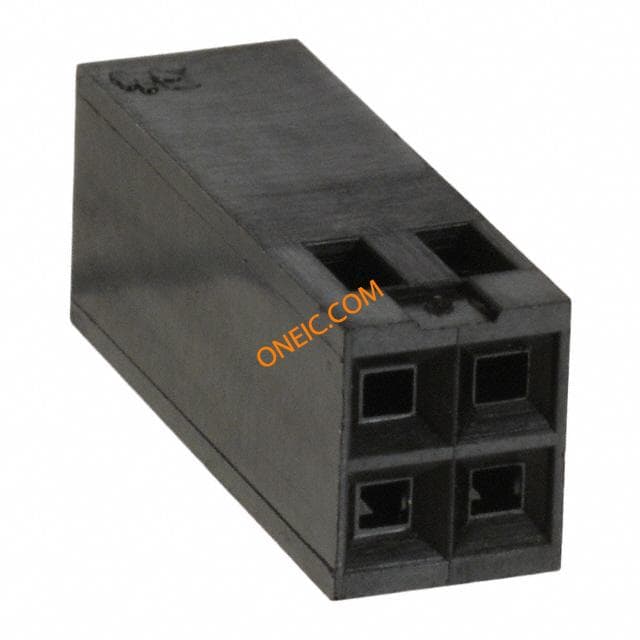

4-87456-9
