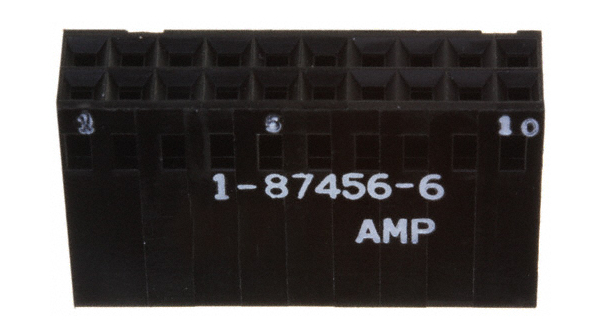

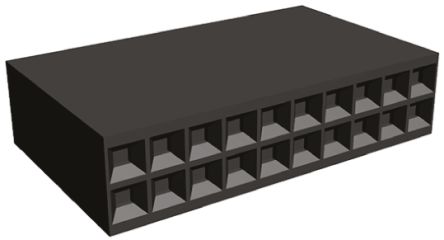

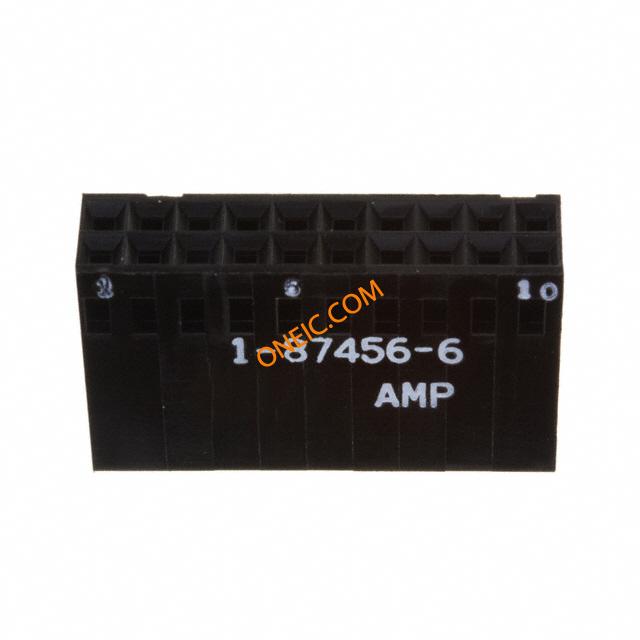

1-87456-6

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 20POS .100 DUAL Housing 20 way receptacle 2.54mm AmpModu Headers & Wire Housings 20P HOUSING Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 20Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM Housing,Connector;ModIV;Dual;20;250VAC;3A;750VYes Crimp housing Pitch2.54 mm Poles 20 Contact DesignStamped Double row / straight / without polarization AMPMODU MOD IV, 1-87456-6, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 20 路直母电缆安装 PCB 壳体 20 MODIV HSG DR MRKD .100CL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	200

合规参数

RoHS	Lead free / RoHS Compliant	标准	ULE28476,CSALR7189,RoHSCompliant,ELVCompliant
海关税号	85366910

电气参数

量程（°/s）	:TE - AMPMODU Mod IV Series	额定电压	250 VAC
击穿电压	750V	最大额定电流	3A
绝缘电阻	5000 MOhms	连接器类型 - 电压输入	Receptacle

机械参数

颜色	Black	深度	6.1mm
间距	2.54 mm	宽度	15.24mm
长度	25.53mm	重量	0.002
包装方式	Bulk	排间距	0.100" (2.54mm)
端接方式	CrimpSnap-In	触头类型	Female Socket
极化	No	安装类型	Straight
行程角度	Straight	连接器类型	Receptacle
接触镀层	:-	排数	2
触头材料	:-	壳体材料	Nylon
总长度	1.005"	主要材料	InterconnectSystem
连接器 - 电缆	Yes	插针孔直径	0.1"
触点数	20	接触件端接	Crimp
位数	20

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	Mod IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Wire Housings
应用细节	Board-to-Board	矩阵（列×行）	0.100x0.100in.
适用产品/相关产品	PCB Connector

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

PDF 文档

1650916.pdf

在线文档

1-87456-6?RQPN=1-87456-6

相关型号

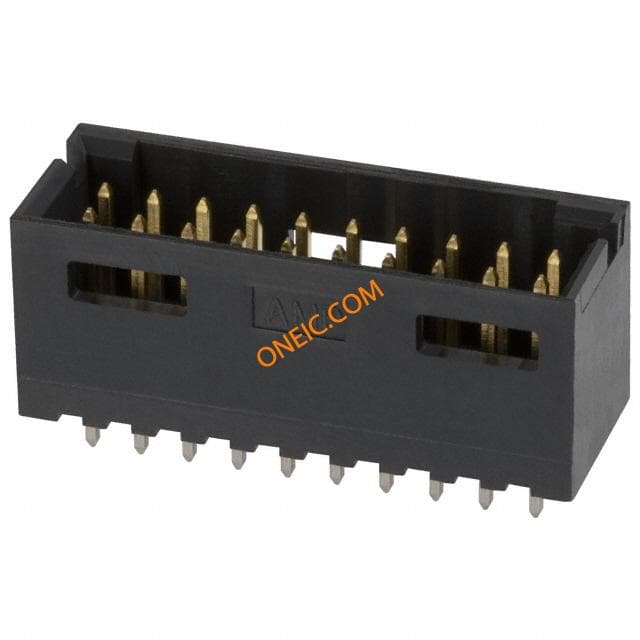

5-103168-8
