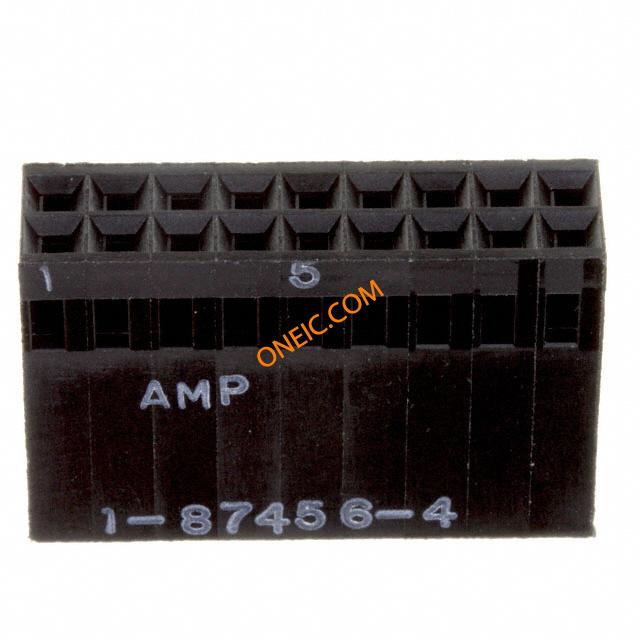

1-87456-4

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 18POS .100 DUAL Headers & Wire Housings 18P DUAL ROW HSG. Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 18Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 18POS, 2.54MM CONNECTOR,HOUSING,RECEPTACLE,MODIV,18POSITION,DUALROW,MARKED 18 MODIV HSG DR MRKD .100CL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	200

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85366910

电气参数

量程（°/s）	:TE - AMPMODU Mod IV Series	额定电压	250 VAC
最大额定电流	3/Contact A	绝缘电阻	5000 MOhms
最小供电电压	250VAC	连接器类型 - 电压输入	Receptacle

机械参数

颜色	Black	深度	15.24 mm
间距	2.54 mm	高度	6.1 mm
重量	0.002	包装方式	Bulk
排间距	0.100" (2.54mm)	触头类型	Female Socket
外壳颜色	Black	安装类型	Straight
连接器类型	Receptacle	接触镀层	:-
排数	2	触头材料	:-
壳体材料	Nylon	总长度	25.4 mm
主要材料	InterconnectSystem	触点数	18
接触件端接	Crimp	位数	18

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Wire Housings
应用细节	Board-to-Board

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

PDF 文档

1650916.pdf

在线文档

1-87456-4?RQPN=1-87456-4
