首页产品分类连接器解决方案压接与焊接端子/接头压接端子（通用）3-87977-3

点击放大查看

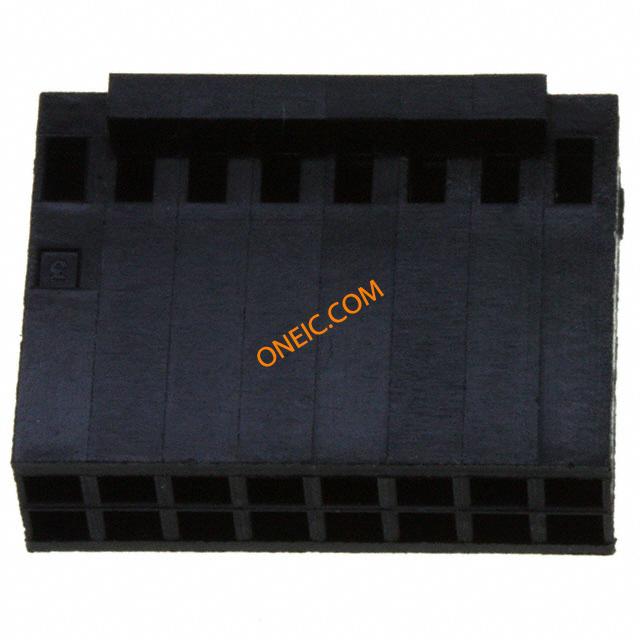

3-87977-3

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 POL DUAL Headers & Wire Housings HSG 2X08C F/H POL Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 16POS, 2.54MM 16 MODIV HSG COMP DR .100 POL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85366910

电气参数

额定电压	250 VAC	开关功能	Detent Latching
最大额定电流	3 A

机械参数

颜色	Black	间距	2.54 mm
重量	0.000001	包装方式	Bulk
导线线规	20-30 AWG	排间距	0.100" (2.54mm)
触头类型	Female Socket	安装类型	Straight
连接器类型	Receptacle	接触镀层	:-
紧固类型	Locking Ramp	排数	2
触头材料	:-	壳体材料	Nylon
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	16	接触件端接	Crimp
位数	16

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
产品特性	:Unstamped Housing	产品子类型	Connectors
应用细节	Board-to-Board

环境参数

工作温度

- 65 C to + 105 C

相关型号

104352-8

te connectivity / amp

Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 16POS DUAL TIN

详情

104351-8

te connectivity / amp

Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tube .100 inch AMPMODU Headers CONN HDR BRKWAY 16POS DUAL 15AU Headers & Wire Housings VERT B/A HDR 16P 600 Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 16Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 16 MODII HDR DRST B/A W/HD

¥7.8200

详情

87579-5

TE Connectivity / AMP

Headers & Wire Housings SHROUDED RA DUAL 16 detent windows .100 inch AMPMODU Headers CONN HEADER RA .100 16POS TIN

详情

87589-4

te connectivity / amp

Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings SHROUDED VER DUAL 16 detent windows .100 inch AMPMODU Headers CONN HEADER VERT .100 16POS TIN Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 16Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 16 MODII HDR DRST SHRD .100CL

¥7.2080

详情

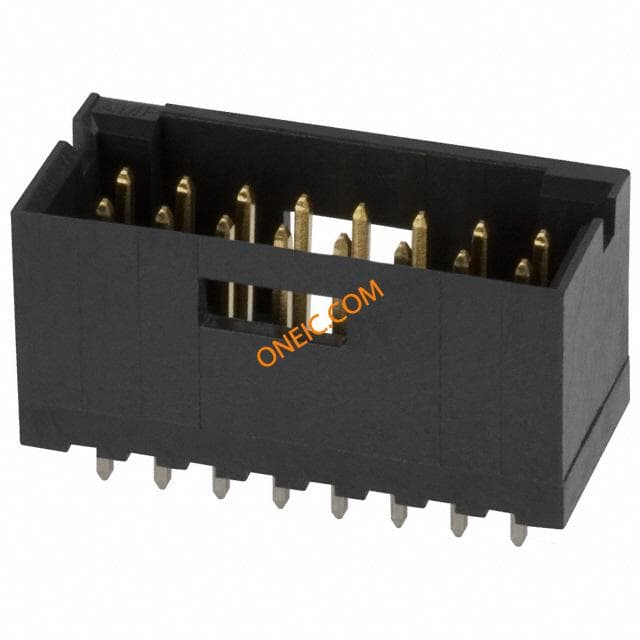

5-103168-6

te connectivity / amp

Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 16POS 30AU Headers & Wire Housings SHROUDED VER DUAL 16 detent windows Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 16Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, VERTICAL, 2ROW, 16WAY Header,ThroughHole;Shrouded;Vertical;PhosphorBronze;Thermoplastic;16 16 MODII HDR DRST SHRD .100CL

¥9.4520

详情

5-146130-7

te connectivity / amp

Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST SMD .100 inch AMPMODU Headers CONN HDR BRKWAY 16P STR DUAL SMT TE Connectivity AMPMODU Series 2.54mm Pitch 16 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings VT 2X08P .1 230/SMT 30AU Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST SMD Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = PinHeader Type = BreakawaySearch Keywords:board to board, AMPMODU, pcb connectors, HEADER,BREAKAWAY,DUALROW,AMPMODU,.100IN.,16POSITION,5.84MM TE Connectivity AMPMODU Mod II 系列 2.54mm节距 16路 (2排) 直引脚管座, 焊接端接, 3A , 表面安装 16 MODII HDR DRST SFMNT B/A LF

¥4.8280

详情

87572-5

te connectivity / amp

Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 16POS DL R/A TIN Headers & Wire Housings 16 MODII HDR DRRA 3/ 208 Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 16 MODII HDR DRRA 3/4SHRD .100

¥5.7120

详情

104355-8

te connectivity / amp

Conn Unshrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings OBSOLETE .100 inch AMPMODU Headers CONN HDR BRKWAY 16POS R/A DUAL

详情

5-102617-6

te connectivity / amp

Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 16POS 15AU Headers & Wire Housings SHROUDED RA DUAL 16 detent windows Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 16 MODII HDR DRRA SHRD LF

¥12.1040

详情

5-102619-6

te connectivity / amp

Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings HDR 2X08P VRT T/H .100 inch AMPMODU Headers CONN HEADER VERT .100 16POS 15AU 16 MODII HDR DRST SHRD .100CL

¥11.8320

详情

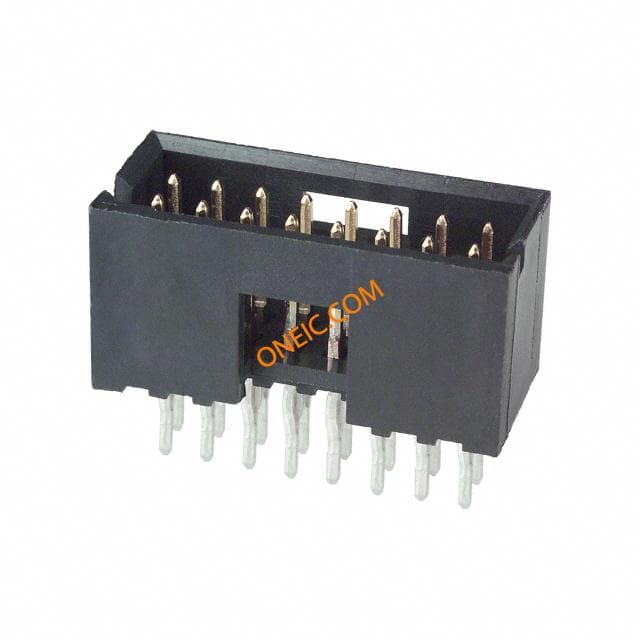

5-102699-7
