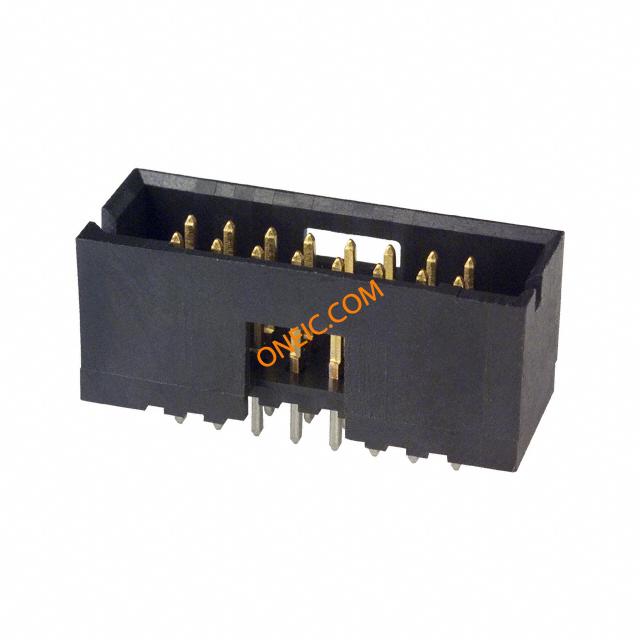

点击放大查看
5-102619-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings HDR 2X08P VRT T/H .100 inch AMPMODU Headers CONN HEADER VERT .100 16POS 15AU 16 MODII HDR DRST SHRD .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 176 |
合规参数
| RoHS | RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 无铅定义 | Wave solder capable to 240°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 750 V | 开关功能 | Detent Windows |
| 连接器阻抗 | 制动器窗口 | 最大额定电流 | 3 A |
| 保护额定电压（VPR） | 750 Vrms | ||
机械参数
| 颜色 | Black | 深度 | 10.16 mm |
| 间距 | 2.54 mm | 高度 | 11.18 mm |
| 底座类型 | 不带 | 包装方式 | Tray |
| 壳体颜色 | 黑色 | 端部尺寸（如SMD/SMT、14mm等） | 3.81 mm [ .15 in ] |
| 引脚样式 | 直角 | 排间距 | 2.54 mm |
| 稳定剂 | Without | 端接方式 | Solder |
| 触头类型 | Male Pin | 第一连接器 | No |
| 第二连接器 | With | 触点形状 | Square |
| 外壳颜色 | Black | 安装类型 | Vertical |
| 连接器类型 | Shrouded | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Detent Lock | 安装样式 | PCB |
| 排数 | 2 | 封装形式 | 4-Sided |
| 外壳材料（壳体） | 4- 面 | 插入件材料 | 磷青铜 |
| 锁定特性 | Detent Windows | 外形（宽 x 高） | Standard |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 3.81 [0.150] | 安装特性 | Without |
| 包装数量 | 176 | 面板安装类型 | Without |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 外径 | .64 mm [ .025 in ] |
| 触点数 | 16 | 端接表面处理 | 带罩 |
| 位数 | 16 | 柱体长度（配合） | 8.08 mm |
| 安装孔直径 | 带有 | 中心触点材料 | 2.54 x 2.54 [.100 x .100] |
| 接触长度 - 配合 | 8.08 [0.318] | 表面贴装焊盘尺寸 | No |
| 端子柱长度 | 3.18 [0.125] | 接触镀层厚度 | 15µin (0.38µm) |
| 静电放电屏蔽 | 不带 | 端接镀层厚度 | 100 – 200 |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU MOD II | 钥匙类型 | 否 |
| 制造商全称 | AMP | 产品子类型 | Headers - Shrouded |
| 选择性装载 | No | 加载位置数 | All |
环境参数
| 密封等级 | 不带 | 温度 | No |
| 工作温度 | - 55 C to + 105 C | 封装热阻 | 1.397 mm [ .055 in ] |
