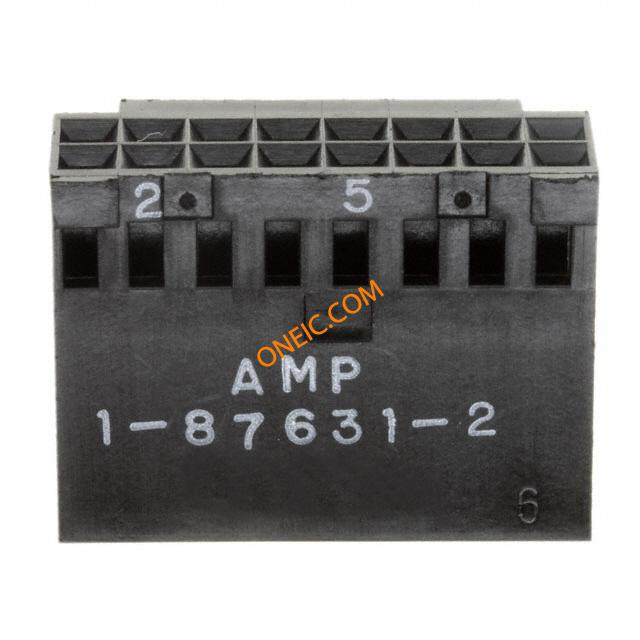

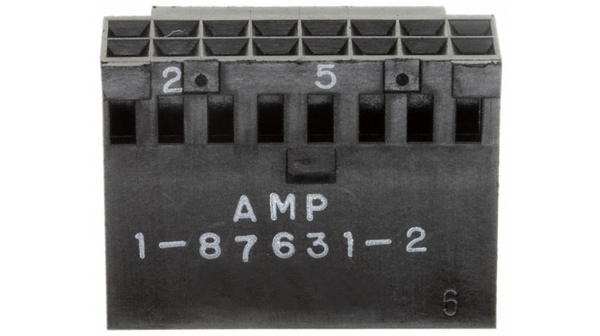

点击放大查看

1-87631-2

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 POL DUAL 2.54mm,housing,16W,Mod IV,DR,snap in Headers & Wire Housings 16P 2 ROW HOUSING Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 2 ROW, 2X8WAY Housing,Connector;Crimp-Snap;Dual;16;250VAC;3A;750V Crimp housing Pitch2.54 mm Poles 16 Contact DesignStamped Double row / straight / with polarization AMPMODU MOD IV, 1-87631-2, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 16 路直母电缆安装 PCB 壳体 16 MODIV HSG DR MRKD .100 POL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准	ULE28476,CSALR7189,RoHSCompliant,ELVCompliant
海关税号	85369010	认证机构	:CSA, UL

电气参数

量程（°/s）	:TE - AMPMODU Mod IV Series	额定电压	250 V
开关功能	Detent Latching	击穿电压	750V
最大额定电流	3 A	绝缘电阻	:500Mohm
最小供电电压	250VAC

机械参数

颜色	Black	深度	15.24mm
间距	2.54 mm	长度	20.32mm
重量	0.002	包装方式	Bulk
导线线规	20-30 AWG	排间距	0.100" (2.54mm)
端接方式	:Crimp	触头类型	Female Socket
极化	Yes	外壳颜色	Black
安装类型	Straight	行程角度	Straight
连接器类型	Receptacle	接触镀层	:Gold
紧固类型	Locking Ramp	排数	2
封装形式	:Black Thermoplastic UL94V-0	触头材料	Phosphor Bronze
壳体材料	Nylon	总长度	20.32 mm
主要材料	InterconnectSystem	连接器 - 电缆	Yes
插针孔直径	0.1"	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	16
接触件端接	Crimp	绝缘直径	0.069or0.046"
位数	16	第一连接器安装类型	:PC Board

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	Mod IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Receptacles / Sockets - Housings
应用细节	Board to Board	矩阵（列×行）	0.100x0.100in.
适用产品/相关产品	Centerline Double-Row Connector

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

PDF 文档

580372.pdf
