9-146308-0-08
| 制造商 | TE Connectivity Ltd. |
| 描述 | CONN HEADR BRKWAY .100 16POS R/A |
| 分类 |
商业参数
| 其他名称 | A34275-08 | 标准包装数量 | 1 |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Unshrouded, Breakaway |
| 接触镀层 | Gold | 排数 | 2 |
| 位数 | 16 | 接触长度 - 配合 | 0.230" (5.84mm) |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 加载位置数 | All | ||
相关型号
102694-6
te connectivity / amp
Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 16POS .100 IDC GOLD
102387-3
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 POL DUAL 2.54mm,housing,16W,Mod IV,DR,snap in Headers & Wire Housings CNTR PLRZD HG 16 DBL Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, 16WAY Housing,Connector;ModIV;Dual;16;250VAC;3A;750VNo Crimp housing Pitch2.54 mm Poles 16 Double row / straight / with polarization AMPMODU MOD IV, 102387-3, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 16 路 直 母 电缆安装 PCB 壳体 16 MODIV HSG COMP DR .100 POL

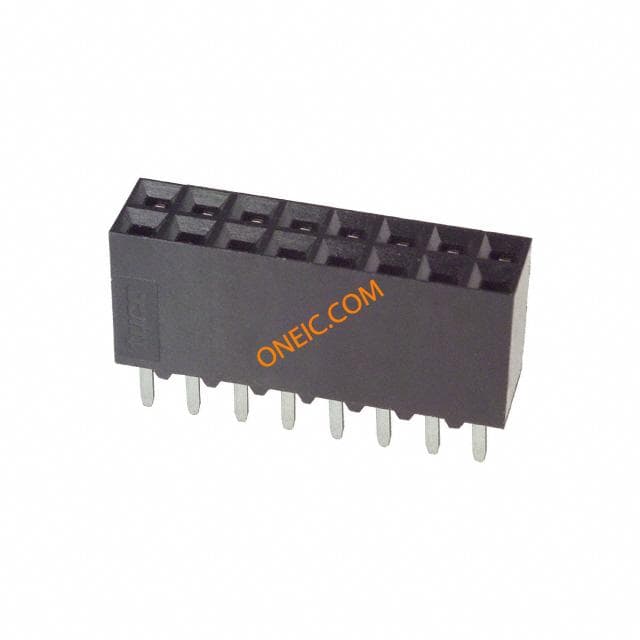

534206-8
te connectivity / amp
Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 16POS .100 VERT DUAL Headers & Wire Housings REC 2X08P VRT T/H Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 16Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, VERTIIDRCERECASY,16MODIIVRTDRCE100/115 16 Position Dual Row 2.54 mm Vertical Through Hole Receptacle Mod II Connector 16 MODII VRT DR CE 100/115
87922-4
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 16POS .100 POL W/STR Headers & Wire Housings HSG 2X08C F/H POL Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE,AMPMODU,MODIV,16POSITION,.100IN,DUALROW,STRAINRELIEF,MARK 16 MODIV HSG W/STR RLF DR MRKD
1-87631-1
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 POL DUAL Headers & Wire Housings RECEPTACLE 16 POS Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE,AMPMODU,MODIV,16POSITION,.100IN,DUALROW,LATCHED TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 16 路 直 母 电缆安装 PCB 连接器外壳 16 MODIV HSG COMP DR .100 POL
5-102448-6
te connectivity / amp
Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 16POS .100 IDC GOLD
147734-7
te connectivity / amp
Conn Socket Strip RCP 16 POS 2.54mm Solder RA SMD Headers & Wire Housings 16 MODII HORZ DR SFMNT 10AU .100 inch AMPMODU Receptacles CONN RCPT 16POS DL .100 R/A GOLD Conn Socket Strip RCP 16 POS 2.54mm Solder RA SMD Product Highlights:ReceptacleMod IINumber of Positions = 16Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,
102448-6
te connectivity / amp
Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 16POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 16P 22-20 16 AMPMODU MT ASSY DR .100CL 16 AMPMODU MT ASSY DR .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
102393-6
te connectivity / amp
Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 16POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 16P 30-26 Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount Product Highlights:Receptacle AssemblyWire Termination Type = Insulation Displacement Crimp (IDC)Number of Positions = 16Number of Rows = DualTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 16 AMPMODU MT ASSY DR .100CL
1-87133-4
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS 100DUAL ROW Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 16 LOCKING CLIP HSG DR MRKD
147104-8
te connectivity / amp
Conn Socket Strip SKT 16 POS 2.54mm Solder ST SMD T/R .100 inch AMPMODU Receptacles CONN RCPT 16POS DUAL VERT SMD
104482-7
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 DUAL ROW Headers & Wire Housings CONN HOUSING 16 POS NON-POLARIZED Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR HOUSING, RECEPTACLE 16POS, 2.54MM TE Connectivity AMPMODU Short Point 系列 2 行 2.54mm 节距 16 路 直 母 电缆安装 PCB 连接器外壳 16 SHORT PT RCPT HSG DR .100CL

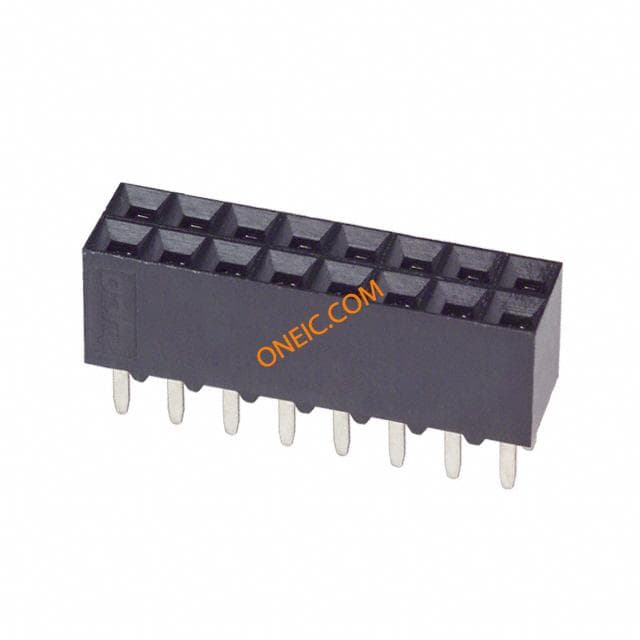

5-534998-8
te connectivity / amp
Conn Socket Strip RCP 16 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 16POS .100 VERT DUAL TE Connectivity Mod IV Series 2.54mm 16 Way 2 Row Straight PCB Socket Through Hole Board to Board Headers & Wire Housings REC 2X08P VRT T/H Conn Socket Strip RCP 16 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IVNumber of Positions = 16Number of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONNECTOR RECEPTACLE, 16WAY, 2ROW VERTIVDRCERECASY,16MODIVVRTDRCE100/125 TE Connectivity AMPMODU Mod IV 系列 2行 16路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 16 MODIV VRT DR CE 100/125
1-535512-8
te connectivity / amp
Conn Socket Strip SKT 16 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 16POS .100 RT/A DUAL Headers & Wire Housings 16P R/A RECEPTACLE 1120 Conn Socket Strip SKT 16 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 16Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 16 MODII HORZ DR CE EESS .100
535598-8
te connectivity / amp
Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RCPT 16POS .100 DUAL T/H AU Headers & Wire Housings 16 MODIV VRT DR CE RCPT ASSY Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 16 MODIV VRT DR CE RCPT ASSY
3-87977-3
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 POL DUAL Headers & Wire Housings HSG 2X08C F/H POL Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 16POS, 2.54MM 16 MODIV HSG COMP DR .100 POL
5-534206-8
te connectivity / amp
Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Headers & Wire Housings REC 2X08P VRT T/H .100 inch AMPMODU Receptacles CONN RECEPT 16POS .100 VERT DUAL Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 16Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, VERTIIDRCERECASY,16MODIIVRTDRCE100/115 16 MODII VRT DR CE 100/115
5-102398-6
te connectivity / amp
Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 16POS .100 IDC GOLD AMPMODUMTReceptacleAssembly,16Pos. Headers & Wire Housings HSG DUAL 16P 26-22 Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount Product Highlights:HousingPreloadedNumber of Positions = 16Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE AMPMODUMTReceptacleAssembly,16Pos.,DualRow,IDC,26-22AWG,.100CL 16 AMPMODU MT ASSY DR .100CL
1-87631-2
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 POL DUAL 2.54mm,housing,16W,Mod IV,DR,snap in Headers & Wire Housings 16P 2 ROW HOUSING Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 2 ROW, 2X8WAY Housing,Connector;Crimp-Snap;Dual;16;250VAC;3A;750V Crimp housing Pitch2.54 mm Poles 16 Contact DesignStamped Double row / straight / with polarization AMPMODU MOD IV, 1-87631-2, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 16 路 直 母 电缆安装 PCB 壳体 16 MODIV HSG DR MRKD .100 POL
535585-8
TE Connectivity
CONN RCPT 16POS DUAL VERT .100 .100 inch AMPMODU Receptacles
