点击放大查看

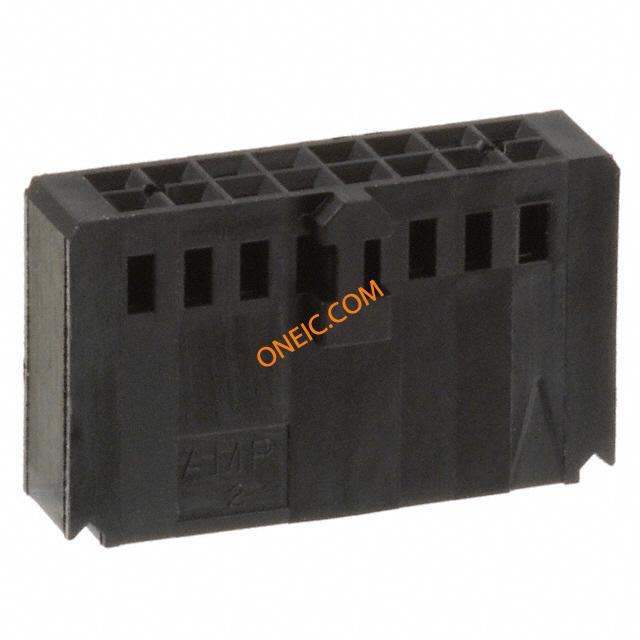

102387-3

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 POL DUAL 2.54mm,housing,16W,Mod IV,DR,snap in Headers & Wire Housings CNTR PLRZD HG 16 DBL Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, 16WAY Housing,Connector;ModIV;Dual;16;250VAC;3A;750VNo Crimp housing Pitch2.54 mm Poles 16 Double row / straight / with polarization AMPMODU MOD IV, 102387-3, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 16 路直母电缆安装 PCB 壳体 16 MODIV HSG COMP DR .100 POL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准	ULListed,CSACertified,RoHSCompliant,ELVCompliant
海关税号	85369010	认证机构	CSA,UL

电气参数

量程（°/s）	:TE - AMPMODU Mod IV Series	额定电压	250 VAC
击穿电压	:750V	最大额定电流	3 A
绝缘电阻	:5000Mohm	最小供电电压	250VAC

机械参数

颜色	Black	深度	15.24mm
间距	2.54 mm	宽度	7.23mm
高度	7.23 mm	长度	24.89mm
重量	0.002	材料（通用）	:Thermoplastic
包装方式	Bulk	导线线规	22-30 AWG
排间距	0.100" (2.54mm)	端接方式	:Crimp
触头类型	Female Socket	引脚间距	:2.54mm
极化	Yes	外壳颜色	Black
安装类型	Straight	行程角度	Straight
连接器类型	Receptacle	接触镀层	:-
排数	2	触头材料	:-
壳体材料	Thermoplastic	总长度	24.89 mm
主要材料	InterconnectSystem	连接器 - 电缆	No
插针孔直径	0.1"	端接样式	Crimp
第一触头极性	Socket (Female)	连接器颜色	:Black
触点数	16	接触件端接	Crimp
位数	16

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	Mod IV
产品特性	Polarizing Key	制造商全称	AMPMODU/MODIVSeries
产品子类型	Receptacles / Sockets - Housings	矩阵（列×行）	0.100x0.100in.
适用产品/相关产品	Centerline Double-Row Connector

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

PDF 文档

580372.pdf

在线文档

102387-3?RQPN=102387-3

相关型号

104352-8

te connectivity / amp

Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 16POS DUAL TIN

详情

104351-8

te connectivity / amp

Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tube .100 inch AMPMODU Headers CONN HDR BRKWAY 16POS DUAL 15AU Headers & Wire Housings VERT B/A HDR 16P 600 Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 16Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 16 MODII HDR DRST B/A W/HD

¥7.8200

详情

146261-8

te connectivity / amp

Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 16POS DL .100 Headers & Wire Housings 16 MODII HDR DRST B/ 600 .100 inch AMPMODU Headers Product Highlights:ConnectorConnector Type = Header - PinHeader Type = Breakaway16 PositionsMating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 16 MODII HDR DRST B/A .100CL

¥3.1280

详情

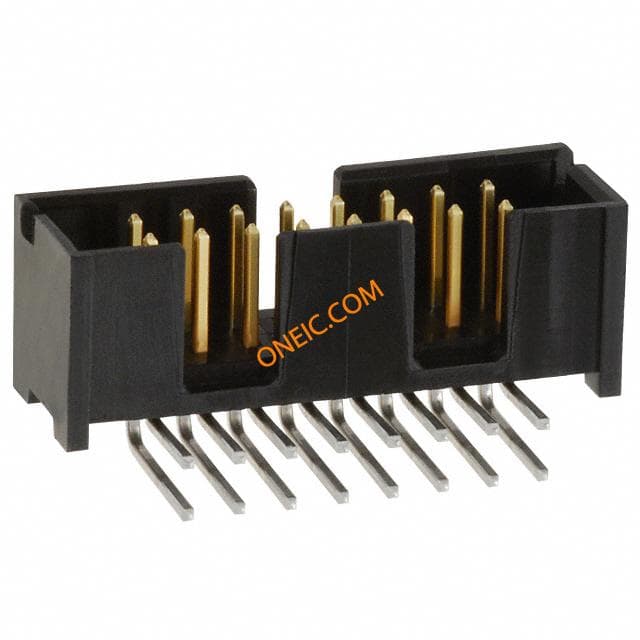

5103310-3
