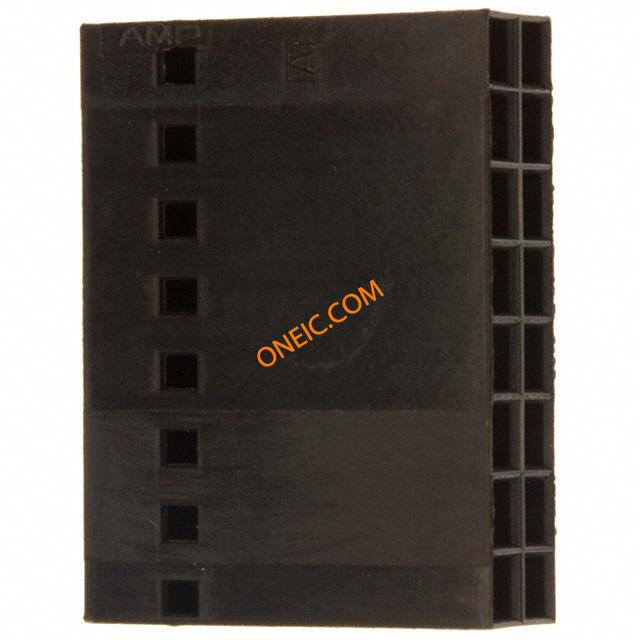

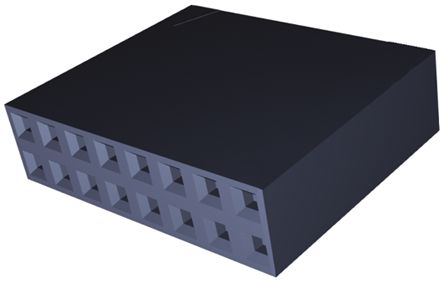

104482-7

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 DUAL ROW Headers & Wire Housings CONN HOUSING 16 POS NON-POLARIZED Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR HOUSING, RECEPTACLE 16POS, 2.54MM TE Connectivity AMPMODU Short Point 系列 2 行 2.54mm 节距 16 路直母电缆安装 PCB 连接器外壳 16 SHORT PT RCPT HSG DR .100CL
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85366930

电气参数

额定电压

300 VAC

最大额定电流

3 A

机械参数

颜色	Black	间距	2.54 mm
重量	0	包装方式	Bulk
导线线规	20-32 AWG	排间距	0.100" (2.54mm)
触头类型	Female Socket	安装类型	Straight
连接器类型	Receptacle	安装样式	Wire
排数	2	壳体材料	Thermoplastic
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	16	接触件端接	Crimp
位数	16

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
产品子类型	Receptacles / Sockets - Housings	适用产品/相关产品	:Ampmodu Socket Contacts

环境参数

工作温度

- 65 C to + 105 C
