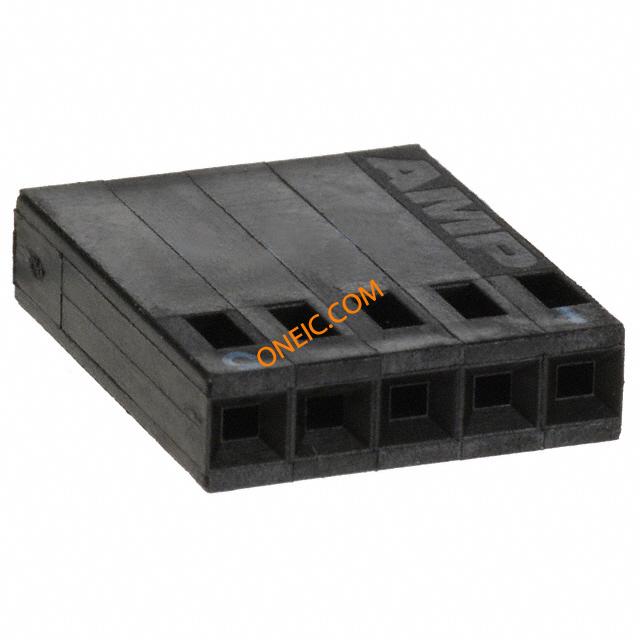

87499-9

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 5POS .100 SINGLE AmpModu IV receptacle Housing 5 way Headers & Wire Housings NON-PLRZD HSG 5 SNGL .505 width Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 5Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing,Connector;Crimp-Snap;Single;5;250VAC;3A;750V TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 5 路直母电缆安装 PCB 连接器外壳 05 MODIV HSG SR MRKD .100CL
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准	ULE28476,CSALR7189,RoHSCompliant,ELVCompliant
标准编号	CSA LR7189, UL E28476	材料阻燃等级	UL 94V-0

电气参数

额定电压	250 VAC	开关功能	Unlatched
供电电压	250 VAC	接触电阻	12 mΩ
输入电阻	5000	连接器阻抗	压接
击穿电压	750V	最大额定电流	3 A
绝缘电阻	5000Megohms	最小供电电压	250VAC
保护额定电压（VPR）	750 V

机械参数

颜色	Black	深度	15.24mm
间距	2.54 mm	宽度	3.56mm
高度	3.56 mm	长度	12.83mm
锁定类型	不带	包装方式	Bulk
壳体颜色	黑色	方向	直
排间距	2.54 mm	端接方式	CrimpSnap-In
触头类型	Female Socket	极化	No
外壳颜色	Black	安装类型	Straight
行程角度	Straight	连接器类型	Receptacle
安装样式	Free Hanging	排数	1
插入件材料	铍铜	壳体材料	Glass Fibre Reinforced Thermoplastic
总长度	12.83 mm	包装数量	1
主要材料	InterconnectSystem	连接器 - 电缆	Yes
插针孔直径	0.1"	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	5
接触件端接	Crimp	位数	5
安装孔直径	不带	典型触点布局	同轴
静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	MOD IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Receptacles / Sockets - Housings
其他规格	是	矩阵（列×行）	0.1in.
适用产品/相关产品	MOD 1/2 Wire to Board Standard Pressure Contact

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

87499-9?RQPN=87499-9

相关型号

104344-3

te connectivity / amp

Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 5POS VERT 30AU Headers & Wire Housings 05 MODII HDR SRST B/A W/HD .100 inch AMPMODU Headers Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = PinHeader Type = StandardSearch Keywords:board to board, AMPMODU, pcb connectors, 05 MODII HDR SRST B/A W/HD

¥0.9520

详情

146281-5

te connectivity / amp

Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 5POS 30GOLD

详情

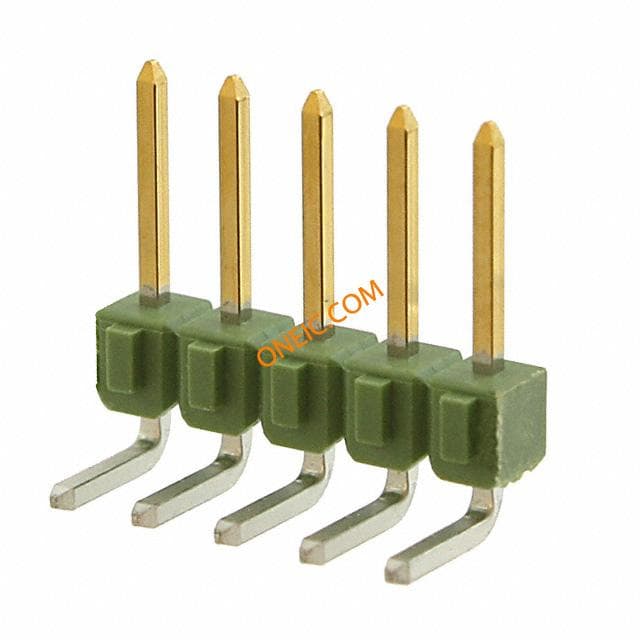

826631-5
