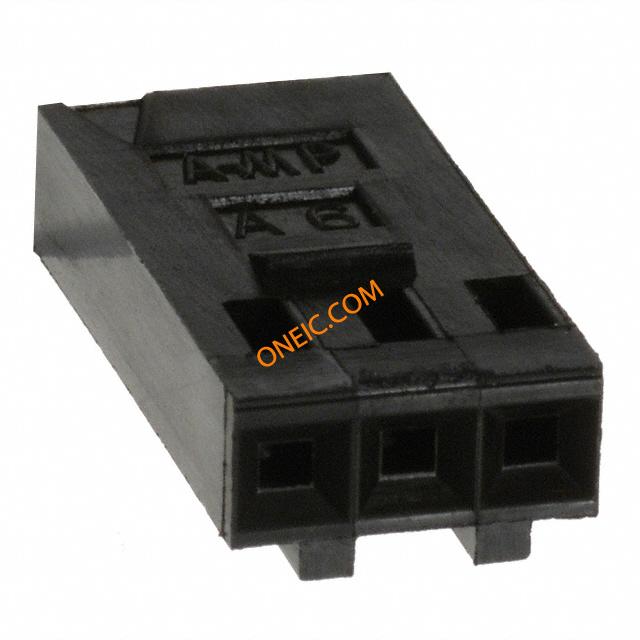

102241-1

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 3POS .100 POLAR 2.54mm,housing,3W,Mod IV,SR,snap in Headers & Wire Housings POLARIZED HSG 3 SNGL detent latching Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 3Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 1 ROW, 3WAY Housing,Connector;ModIV;Single;3;250VAC;3A;750VYes Plug; wire-board; female; PIN:3; w/o terminals; 2.54mm; for cable Crimp housing Pitch2.54 mm Poles 3 Single row / straight / with polarization / with detent latching AMPMODU MOD IV, 102241-1, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 1 行 2.54mm 节距 3 路直母电缆安装 PCB 壳体 03 MODIV HSG COMP SR .100 POL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	30000

合规参数

RoHS	Lead free / RoHS Compliant	标准	ULListed,CSACertified
海关税号	85369010	认证机构	:CSA, UL

电气参数

量程（°/s）	:TE - AMPMODU Mod IV Series	额定电压	250 VAC
开关功能	Detent Latching	击穿电压	750V
最大额定电流	3 A	绝缘电阻	:500Mohm
最小供电电压	250VAC	连接器类型 - 电压输入	w/o terminals

机械参数

颜色	Black	深度	15.24mm
间距	2.54 mm	宽度	4.62mm
高度	4.62 mm	长度	7.62mm
重量	0.031	包装方式	Bulk
导线线规	20-32 AWG	端接方式	12Milliohms
触头类型	Female Socket	柱间距	2.54mm
极化	Yes	外壳颜色	Black
安装类型	Straight	行程角度	Straight
连接器类型	Receptacle	接触镀层	:Gold
紧固类型	Locking Ramp	安装样式	for cable
排数	1	封装形式	:Black Thermoplastic UL94V-0
触头材料	:-	壳体材料	Nylon
总长度	7.62 mm	包装数量	1
主要材料	InterconnectSystem	连接器 - 电缆	plug
插针孔直径	0.1"	触点数	3
接触件端接	Crimp	位数	3
第一连接器安装类型	:PCB	第一连接器安装特征	1x3

产品信息

SPG	1	备注	Contacts Not Provided
类型	Housing	连接器性别	RCP
系列	Mod IV	制造商全称	AMPMODU/MODIVSeries
产品子类型	Wire Housings	适配器系列	AMPMODU MOD IV
单元数量	1	矩阵（列×行）	0.1in.
适用产品/相关产品	Centerline Single-Row Connector
